FAG 22318-E1-T41D vibrating screen bearing

  • 22318-E1-T41D bearing

  • Bearing 22318-E1-T41D price

Keywords:FAG 22318-E1-T41D Bearing for vibratory machinery

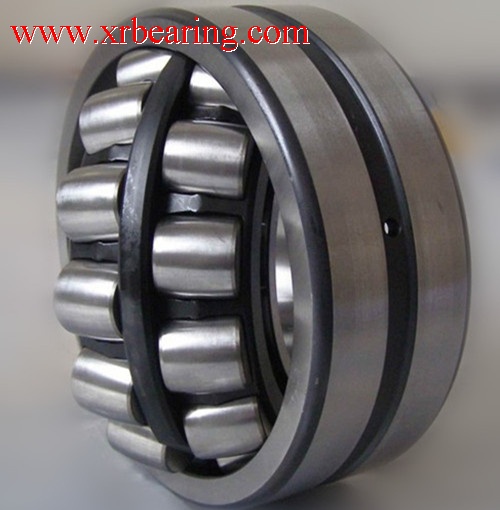

FAG 22318-E1-T41D bearing is double row spherical roller bearing and also called self-aligning roller bearing,FAG 22318-E1-T41D bearing is diffent with the commonly size and we can see the suffix T41D, It has one sheet steel window cage half per row of rollers with high geometrical stability and all cage parts are subject to a special surface hardening process, it design and special used in vibratory machinery, the inner diameter is 90mm,outer size is 190mm,the width is 64mm,the weight of FAG 22318-E1-T41D bearing is 8.5kg,it consisted of inner ring,outer ring,double row rollers and pressed steel cages,black chamfer and cylindrical bore & tapered bore are avaiable.XRB as one of the biggest China bearing manufacturer can supply the best solution for our bearing customers according to their specific applications.

High precision chrome steel FAG 22318-E1-T41D
 bearing

High precision FAG 22318-E1-T41D bearing for vibratory machinery
22318-E1-T41D Bearing,
90×190×64mm bearing
FAG 22318-E1-T41D bearing type spherical roller bearing
inner diameter 90mm
outer diameter 190mm
width diameter 64mm
bearing weight 7kg
FAG 22318-E1-T41D bearing are available from many design, variants, series and size,

►FAG 22318-E1-T41D bearing
have specially designed raceways and accommodate a large number of spherical rollers.

►FAG 22318-E1-T41D bearings are designed to achieve a high capacity with low friction and continuous roller alignment. This bearing type is ideal for operating conditions

►FAG vibrating screen bearing contain spherical rollers,they can carry both axial and shaft direction capacity.
Design:
22318-E1-T41D bearing
Metarial:High quality chrome steel
Lubrication:Oil or grease
sealed:Rubber sealed or press steel shielded
dynamic load rating: 310kN
static load rating:310kN
Fatigue load limit:29kN
Reference speed:5000r/min
FAG 22318-E1-T41D bearing are widely used in industry area:
►Vibrating screen
►Crane Hooks
Industrial gearboxes
►Pulp & papernes
Material handling
Fluid machinery
Mining & construction


































XRB is the FAG 22318-E1-T41D China bearing manufacturer & factory & exporter & supplier ,it can supply FAG 22318-E1-T41D bearing, Our large quantity FAG 22318-E1-T41D bearing Stock can meet your need with lowest price and fast delivery


We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our 22318-E1-T41D bearing to your office at the first time.
