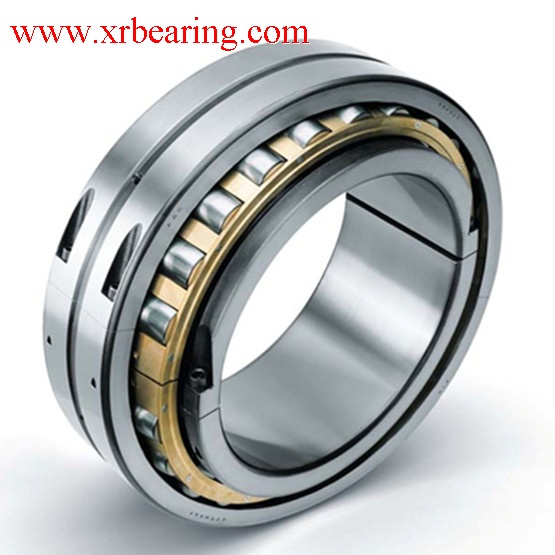

FAG 231SM360-MA Bearing

  • 231SM360-MA

  • Bearing 231SM360-MA price

Related bearing:231SM360-MA bearing, 231SM360-MA split spherical roller bearing

Designation

Split spherical roller bearing 231SM360-MA bearing

bearing inner diameter

360mm

bearing outer diameter

620mm

bearing width

194mm



XRB BEARING is 231SM360-MA china bearing manufacturer, factory,supplier and exporter, we focus on produce split spherical roller bearing 231SM360-MA with metric size,you can see in aboved sheet, the inner ring is 360mm,outer ring is 620mm,width is 194mm this bearing weight:292kg,231SM360-MA bearing replaced 23176K unsplit spherical roller bearing, it work with adapter sleeve bearing H3176HG and Plummer block housing SD3176-H-TS,The design (cage)of split spherical roller bearing  are special used in bearing position which are difficult to installation just like very long shaft which need support at many positions,on cranked shafts,this type of bearing can replace the unsplit spherical roller bearing under difficult installation application.the use of split spherical roller bearing reduces the downtime of machinery and plant.

231SM360-MA bearing design and application

231SM360-MA split Spherical roller bearings have a cylindrical bore,the inner ring,outer ring and the cage with the spherical rollers are split in half,The split bearing rings are held together with screws,this type of bearing have glass fibre reinforced polyamide and brass cage design.

231SM360-MA bearings are widely used in conveying equipment,materials processing plant, large ventilation plants,ventilation plant,rolling mills, ships and paper machinery.

Advantage of 231SM360-MA Split spherical roller bearings

1.competitive price,so it can be support you to success more power

2.many years experience in spherical roller bearing production.

3,Reliable operation quality

4.Strong production capacity can make sure the delivery the goods as soon as possible,DHL,TNT,FEDEX we have very long time cooperation to ship the goods to your office .

if you have demand for split spherical roller bearing 231SM360-MA
,please contact with brandbearings@gmail.com
