FAG F-809055.TR1-J20AA Bearing

  • F-809055.TR1-J20AA

  • Bearing F-809055.TR1-J20AA price

Keywords:FAG F-809055.TR1-J20AA bearing,F-809055.TR1-J20AA  insulated bearing

FAG F-809055.TR1-J20AA bearing is insulated bearing
  and tapered roller Bearings with a Ceramic Coating, The coatings are subjected to a 100% quality inspection and guarantee a dielectric strength of at least 1000 VDC (J20AA, J20C) or 500 VDC (J20B), respectively. insulated bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated & insocoat bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

FAG F-809055.TR1-J20AA bearing suitable for high and middle high speed,but low cost maintenance.FAG as one of the biggest top quality bearing brand,Quality can be approved by the market.

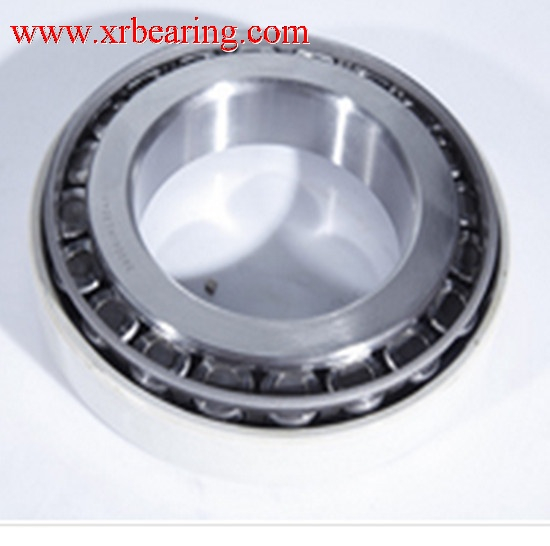

FAG F-809055.TR1-J20AA insulated tapered roller bearing

High speed F-809055.TR1-J20AA insulated bearing
FAG F-809055.TR1-J20AA  Bearing
198.298×282.575×46.038mm bearing
        FAG F-809055.TR1-J20AA Bearing type Insulated tapered roller bearing
 inner diameter 198.298mm
outer diameter 282.575mm
width diameter 46.038mm
FAG F-809055.TR1-J20AA insulated tapered roller bearing weight 9.34kg
FAG insulated bearing are available from many design, variants, series and size,

►FAG insulated tapered roller bearing with a coated inner ring or outer ring,with inch & metric size insocoat bearing

FAG F-809055.TR1-J20AA bearing with steel cage can accommodate very heavy radial loads and very high speeds,

Metarial:High quality chrome steel
Lubrication:Oil or grease
dynamic load rating:232kN
static load rating:355kN
Fatigue load limit:50kN
Reference speed:4500r/min
limiting speed:4800r/min
FAG F-809055.TR1-J20AA bearing are widely used in industry area: ►Power generation
►wheelsets and traction motors(rail vehicles)
DC and AC motors (drivetrains)
►generators (wind power)

XRB is the FAG F-809055.TR1-J20AA
 bearing exporter & supplier,it can supply FAG F-809055.TR1-J20AA bearing, Our large quantity FAG insulated tapered roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find EASIER F-809055.TR1-J20AA Bearing, the other type and brand insulated tapered roller bearing

insocoat tapered roller bearing
FAG Current-Insulated Bearings

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality FAG F-809055.TR1-J20AA bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
