FAG K36990-36920-J20B Bearing

  • K36990-36920-J20B
  • Bearing K36990-36920-J20B price
Keywords:FAG K36990-36920-J20B bearing,K36990-36920-J20B  insulated bearing

FAG K36990-36920-J20B bearing is insulated bearing
  and tapered roller Bearings with a Ceramic Coating, The coatings are subjected to a 100% quality inspection and guarantee a dielectric strength of at least 1000 VDC (J20AA, J20C) or 500 VDC (J20B), respectively. insulated bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated & insocoat bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

FAG K36990-36920-J20B bearing suitable for high and middle high speed,but low cost maintenance.FAG as one of the biggest top quality bearing brand,Quality can be approved by the market.

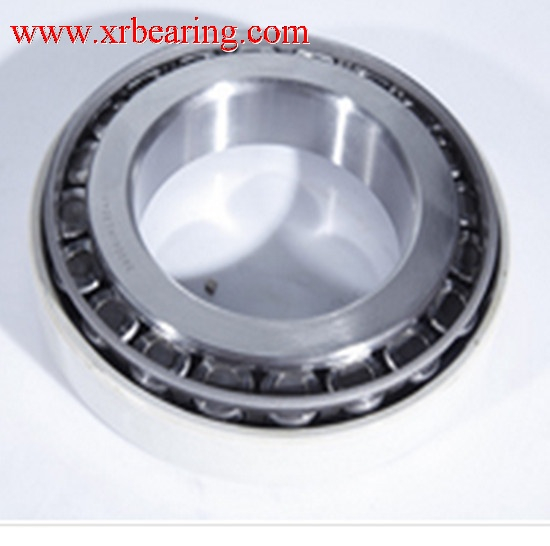

FAG K36990-36920-J20B insulated tapered roller bearing

High speed K36990-36920-J20B insulated bearing
FAG K36990-36920-J20B  Bearing
177.8×227.012×30.162mm bearing
        FAG K36990-36920-J20B Bearing type Insulated tapered roller bearing
 inner diameter 177.8mm
outer diameter 227.012mm
width diameter 30.162mm
FAG K36990-36920-J20B insulated tapered roller bearing weight 3.18kg
FAG insulated bearing are available from many design, variants, series and size,

►FAG insulated tapered roller bearing with a coated inner ring or outer ring,with inch & metric size insocoat bearing

FAG K36990-36920-J20B bearing with steel cage can accommodate very heavy radial loads and very high speeds,

Metarial:High quality chrome steel
Lubrication:Oil or grease
dynamic load rating:232kN
static load rating:355kN
Fatigue load limit:50kN
Reference speed:4500r/min
limiting speed:4800r/min
FAG K36990-36920-J20B bearing are widely used in industry area: ►Power generation
►wheelsets and traction motors(rail vehicles)
DC and AC motors (drivetrains)
►generators (wind power)

XRB is the FAG K36990-36920-J20B
 bearing exporter & supplier,it can supply FAG K36990-36920-J20B bearing, Our large quantity FAG insulated tapered roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find EASIER K36990-36920-J20B Bearing, the other type and brand insulated tapered roller bearing

insocoat tapered roller bearing
FAG Current-Insulated Bearings

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality FAG K36990-36920-J20B bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
