Keywords:SE509 housing for 22209EK bearing,SE509 plummer block housing

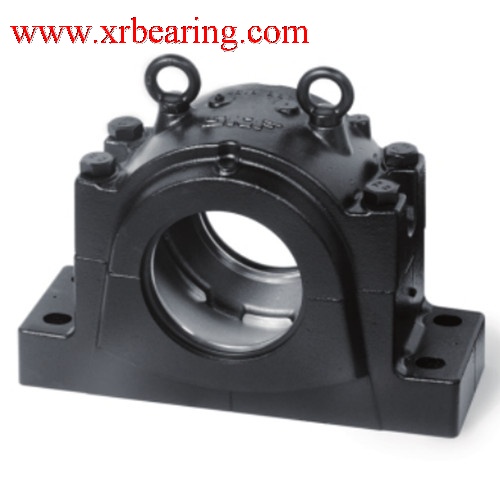

SE509 housing enable the bearings to achieve maximum bearing service life with less need for maintenance,this supports user efforts to further reduce mainenace costs, SE509 Bearing housing are designed for easy alignment and handing during installation. SE509 bearing housing are made of grey cast iron,and primarily intended for 22209EK bearing with a H309 Adapter sleeve,TNS509 Seals and TSN509 End cover,the shaft of SE509 plummer block housing is 40mm,and the height is 109mm,length is 205mm,the weight of SE509 housing is 3.4kg,the Split plummer block housing are not only working with 22209EK Spherical roller bearings, But also BS2-2209-2CSK bearing,C2209KTN9 Carb toroidal roller bearings,1209EKTN9 Bearing and 2209KETN9 self-aligning ball bearings.
Application of SE509 housings:
* Material handling
* Handling system
* Mining and construction
* Metallurgical
* Pulp and paper
Advantage of XRB SE509 Plummer block housings:
* Long service life
* Robust design
* Long relubrication intervals
* Ready for relubrication
* Condition monitoring facilities
* Avoid risk of mixed caps
* Fast and easy mounting and dismounting
XRB as the biggest Plummer block housing supplier and China bearing manufacturer,it can supply the best solution for plummer block housing and the bearings according to their specific applications. ,it can supply Original SE509 housing and 22209EK Bearing,BS2-2209-2CSK Bearing,2209EKTN9 Bearing,1209EKTN9 Bearing,C2209K Bearing, Our large quantity SE510-608 plummer block housings Stock can meet your need with lowest price and fast delivery.
Designation of SNL plummer block housing
suffix:
- housing for a bearing on an adapter sleeve and a straight shaft
G Housing for a bearing with a cylindrical bore and for a stepped shaft
L Housing for a non-locating bearing arrangement
F Housing for a locating bearing arrangement
TURT Housing prepared for oil lubrication(spherical roller bearings)with seals
TURA Housing prepared for oil lubrication(Carb toroidal roller bearing)with seals
TURP Housing with a special seal for large axial movement and circulating oil lubrication
V Housing with grease escape holes in the base
We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our SE509 housing to your office at the first time.More technical details,please contact with :
E-mail: brandbearings@gmail.com, Skype:brandbearings
