NCF2334ECJB/PEX
Bearing NCF2334ECJB/PEX price

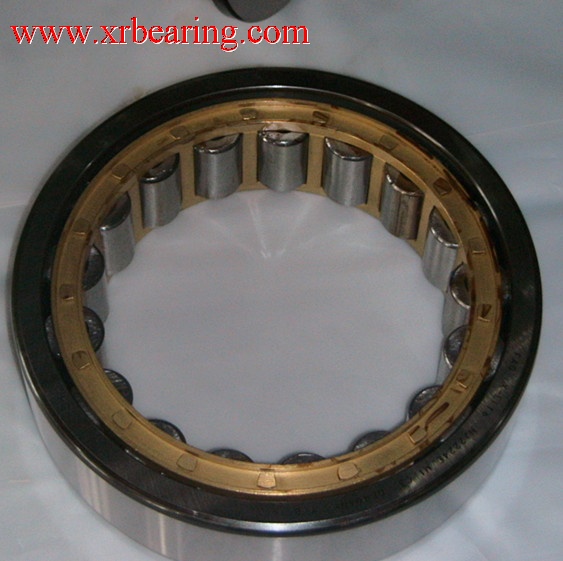

High capacity Cylindrical roller bearing | NCF2334ECJB/PEX Bearing 170×360×120mm bearing |
NCF2334ECJB/PEX Bearing type | cylindrical roller bearing |
roller bearing inner diameter | 170mm |
roller bearing outer diameter | 360mm |
roller bearing width diameter | 120mm |
NCF2334ECJB/PEX Cylindrical roller bearing weight | 58.5kg |
bearing are available from many design, variants, series and size, ► cylindrical roller bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. ► NCF2334ECJB/PEX bearing with brass cage can accommodate very heavy radial loads and very high speeds, ► NCF2334ECJB/PEX cylindrical roller bearing have two flange on either the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat ► cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers. Full-complement cylindrical roller bearings. | Design: cylindrical roller bearing NCF2334ECJB/PEX |
►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:1540kN ►static load rating:2200kN ►Fatigue load limit:216kN ►Reference speed:1700r/min ►limiting speed: 2600r/min | |
NCF2334ECJB/PEX bearing are widely used in industry area: | ►Power generation ►Aggregate processing ►Oil fields&Pumps ►Crop shears ►Rolling mills ►Gear drives &Hoists ►Mining & construction |
High capacity Cylindrical roller bearing | NCF2334ECJB/PEX Bearing 170×360×120mm bearing |
NCF2334ECJB/PEX Bearing type | cylindrical roller bearing |
roller bearing inner diameter | 170mm |
roller bearing outer diameter | 360mm |
roller bearing width diameter | 120mm |
NCF2334ECJB/PEX Cylindrical roller bearing weight | 58.5kg |
bearing are available from many design, variants, series and size, ► cylindrical roller bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. ► NCF2334ECJB/PEX bearing with brass cage can accommodate very heavy radial loads and very high speeds, ► NCF2334ECJB/PEX cylindrical roller bearing have two flange on either the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat ► cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers. Full-complement cylindrical roller bearings. | Design: cylindrical roller bearing NCF2334ECJB/PEX |
►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:1540kN ►static load rating:2200kN ►Fatigue load limit:216kN ►Reference speed:1700r/min ►limiting speed: 2600r/min | |
NCF2334ECJB/PEX bearing are widely used in industry area: | ►Power generation ►Aggregate processing ►Oil fields&Pumps ►Crop shears ►Rolling mills ►Gear drives &Hoists ►Mining & construction |
