Keywords:SNL3238 housing for 23238CCK/W33 bearing,SNL3238 plummer block housing

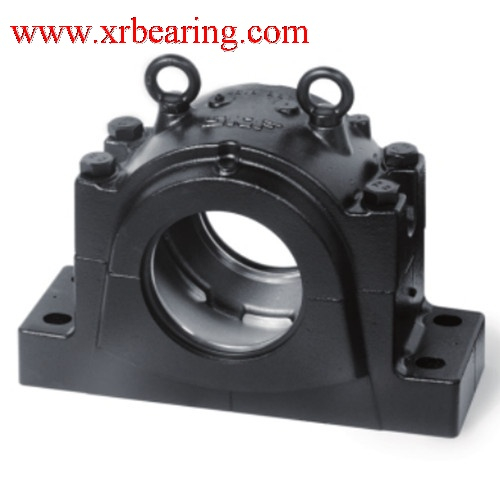

SNL3238 housing enable the bearings to achieve maximum bearing service life with less need for maintenance,this supports user efforts to further reduce mainenace costs,SNL3238 housing are designed for easy alignment and handing during installation.SNL3238 housing are made of grey cast iron,and primarily intended for 23238CCK/W33 bearing with HE2338 Adapter sleeve,TS40/6.3/4 Seals and ETS40 End cover,the shaft of SNL3238 plummer block housing is 171.45mm,and the height is 411mm,length is 610mm,the weight of SNL3238 housing is 123kg,the large plummer block housing are not only working with 23238CCK/W33 spherical roller bearings,but 23238-2CS5K Bearing, C3238K CARB toroical roller bearings,self-aligning ball bearings.
Application of SNL3238 housings:
* Material handling
* Handling system
* Mining and construction
* Metallurgical
* Pulp and paper
Advantage of XRB SNL3238 Plummer block housings:
* Long service life
* Robust design
* Long relubrication intervals
* Ready for relubrication
* Condition monitoring facilities
* Avoid risk of mixed caps
* Fast and easy mounting and dismounting
XRB as the biggest Plummer block housing supplier and China bearing manufacturer,it can supply the best solution for plummer block housing and the bearings according to their specific applications. ,it can supply Original SNL3238 housing and 23238CCK/W33 Bearing,23238-2CS5K Bearing,C3238K Carb toroidal roller Bearing, Our large quantity SNL3238 plummer block housings Stock can meet your need with lowest price and fast delivery.
Designation of SNL plummer block housing
suffix:
- housing for a bearing on an adapter sleeve and a straight shaft
G Housing for a bearing with a cylindrical bore and for a stepped shaft
L Housing for a non-locating bearing arrangement
F Housing for a locating bearing arrangement
TURT Housing prepared for oil lubrication(spherical roller bearings)with seals
TURA Housing prepared for oil lubrication(Carb toroidal roller bearing)with seals
TURP Housing with a special seal for large axial movement and circulating oil lubrication
V Housing with grease escape holes in the base
We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our SNL3238 housing to your office at the first time.More technical details,please contact with :
E-mail: brandbearings@gmail.com, Skype:brandbearings
