Keywords:SNL3240 housing for 23240CCK/W33 bearing,SNL3240 plummer block housing

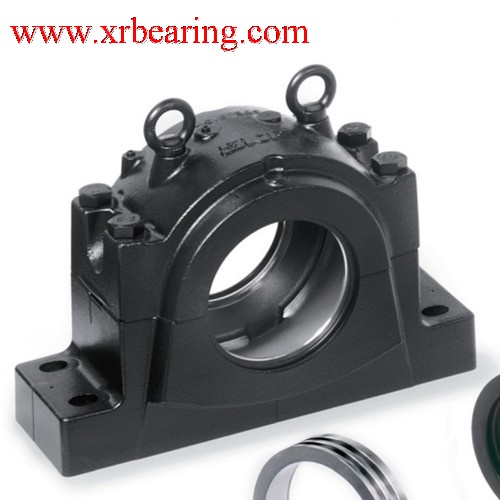

SNL3240 housing enable the bearings to achieve maximum bearing service life with less need for maintenance,this supports user efforts to further reduce mainenace costs,SNL3240 housing are designed for easy alignment and handing during installation.SNL3240 housing are made of grey cast iron,and primarily intended for 23240CCK/W33 bearing with HE2340 Adapter sleeve,TS48/7 Seals and ETS48 End cover,the shaft of SNL3240 plummer block housing is 177.8mm,and the height is 434mm,length is 640mm,the weight of SNL3240 housing is 139kg,the large plummer block housing are not only working with 23240CCK/W33 spherical roller bearings,but 23240-2CS5K Bearing, C3240K CARB toroical roller bearings,self-aligning ball bearings.
Application of SNL3240 housings:
* Material handling
* Handling system
* Mining and construction
* Metallurgical
* Pulp and paper
Advantage of XRB SNL3240 Plummer block housings:
* Long service life
* Robust design
* Long relubrication intervals
* Ready for relubrication
* Condition monitoring facilities
* Avoid risk of mixed caps
* Fast and easy mounting and dismounting
XRB as the biggest Plummer block housing supplier and China bearing manufacturer,it can supply the best solution for plummer block housing and the bearings according to their specific applications. ,it can supply Original SNL3240 housing and 23240CCK/W33 Bearing,23240-2CS5K Bearing,C3240K Carb toroidal roller Bearing, Our large quantity SNL3240 plummer block housings Stock can meet your need with lowest price and fast delivery.
Designation of SNL plummer block housing
suffix:
- housing for a bearing on an adapter sleeve and a straight shaft
G Housing for a bearing with a cylindrical bore and for a stepped shaft
L Housing for a non-locating bearing arrangement
F Housing for a locating bearing arrangement
TURT Housing prepared for oil lubrication(spherical roller bearings)with seals
TURA Housing prepared for oil lubrication(Carb toroidal roller bearing)with seals
TURP Housing with a special seal for large axial movement and circulating oil lubrication
V Housing with grease escape holes in the base
