Keywords:SNL526 housing for 22226EK bearing,SNL526 plummer block housing

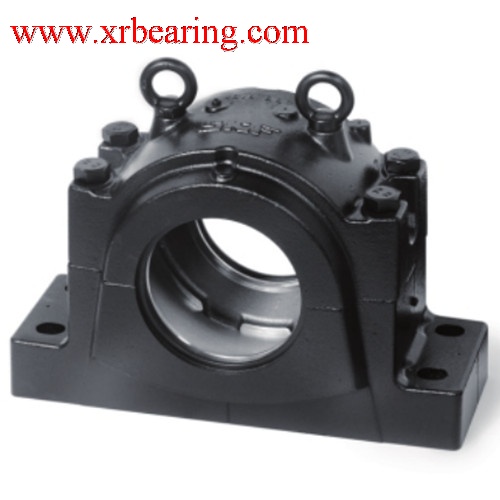

SNL526 housing enable the bearings to achieve maximum bearing service life with less need for maintenance,this supports user efforts to further reduce mainenace costs, SNL526 Bearing housing are designed for easy alignment and handing during installation. SNL526 bearing housing are made of grey cast iron,and primarily intended for 22226EK bearing with a H3126 Adapter sleeve,TNS526 Seals and TSN526 End cover,the shaft of SNL526 plummer block housing is 115mm,and the height is 290mm,length is 445mm,the weight of SNL526 housing is 33kg,the Split plummer block housing are not only working with 22226EK Spherical roller bearings, But also C2226K Carb toroidal roller bearings,23226CCK/W33 Bearing,BS2-2226-2CS5K Bearing.
Application of SNL526 housings:
* Material handling
* Handling system
* Mining and construction
* Metallurgical
* Pulp and paper
Advantage of XRB SNL526 Plummer block housings:
* Long service life
* Robust design
* Long relubrication intervals
* Ready for relubrication
* Condition monitoring facilities
* Avoid risk of mixed caps
* Fast and easy mounting and dismounting
XRB as the biggest Plummer block housing supplier and China bearing manufacturer,it can supply the best solution for plummer block housing and the bearings according to their specific applications. ,it can supply Original SNL526 Bearing housing and 22226EK Bearing, C2226KM Bearing,23226CCK/W33 Bearing,BS2-2226-2CS5K Bearing, Our large quantity SNL526 plummer block housings Stock can meet your need with lowest price and fast delivery.

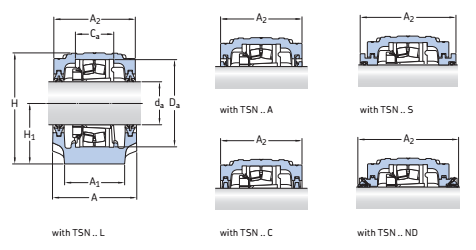

Designation of SNL plummer block housing
suffix:
- housing for a bearing on an adapter sleeve and a straight shaft
G Housing for a bearing with a cylindrical bore and for a stepped shaft
L Housing for a non-locating bearing arrangement
F Housing for a locating bearing arrangement
TURT Housing prepared for oil lubrication(spherical roller bearings)with seals
TURA Housing prepared for oil lubrication(Carb toroidal roller bearing)with seals
TURP Housing with a special seal for large axial movement and circulating oil lubrication
V Housing with grease escape holes in the base
