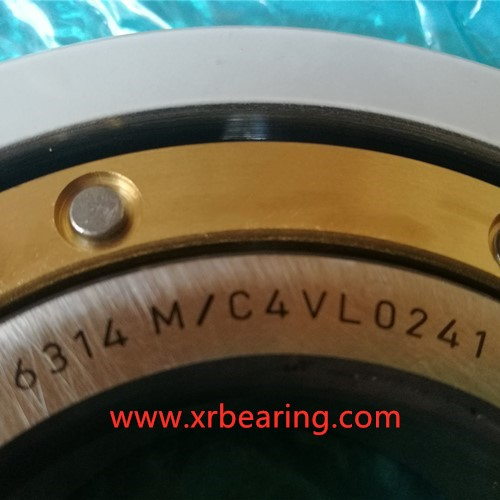

EASIER provides electrically insulated bearings, to protect against damages caused by electric currents. These bearings have an electrically insulating coating on the outer ring (VL0241 execution), or on the inner ring (VL2071 execution). The inner ring coating can be made from bore diameters above and including 70 mm. The coating consists of a nominal 100-µm thick aluminium oxide layer and is applied by a unique coa- ting process using plasma-spraying technology.
Insulated Deep Groove Ball bearings 6324/C3VL2071 have outer ring coating, inner ring coating and ceramic material rolling elements. Because of the higher cost of using ceramic material rolling elements, in most cases, the inner ring or outer ring 50-200 μm is used. Thick ceramic coating.
The first two coatings are plasma spraying method to coat ceramic material on the bearing surface. This coating still maintains its insulation performance in a humid environment. The ceramic material rolling element insulated bearing is the rolling element. Using ceramic materials, it has excellent current resistance capability.
In most cases, it is sufficient to interrupt the electric circuit between the housing and shaft, in order to mount current-insulated bearings at one or both bearing locations, depending on the application.
Generally, current-insulated bearings (ceramic-coated or hybrid) exhibit significantly higher resistance to electrical current than standard bearings.
Designation | Principal dimensions | Basic load ratings | Fatique load limit | Speed ratings | Weight | ||||
Deep groove ball bearing | mm | mm | mm | dynamic | static | Reference speed | Limiting speed | kg | |
d | D | B | C[kN] | C0[kN] | [r/min] | [r/min] | |||
6322/C3VL0241 | 110 | 240 | 50 | 216 | 180 | 5.7 | 6000 | 3800 | 9.7 |
6322 M/C3VL0241 | 110 | 240 | 50 | 216 | 180 | 5.7 | 6000 | 5300 | 11 |
6224/C3VL0241 | 120 | 215 | 40 | 153 | 118 | 3.9 | 6300 | 4000 | 5.3 |
6324/C3VL2071 | 120 | 260 | 55 | 216 | 186 | 5.7 | 5600 | 3400 | 12.7 |
6324 M/C3VL2071 | 120 | 260 | 55 | 216 | 186 | 5.7 | 5600 | 5000 | 15 |
6226/C3VL2071 | 130 | 230 | 40 | 163 | 132 | 4.15 | 5600 | 3600 | 5.8 |
6326/C3VL2071 | 130 | 280 | 58 | 242 | 216 | 6.3 | 5000 | 3200 | 15.5 |
6326 M/C3VL2071 | 130 | 280 | 58 | 242 | 216 | 6.3 | 5000 | 4500 | 16.5 |
6228/C3VL2071 | 140 | 250 | 42 | 174 | 150 | 4.55 | 5300 | 3400 | 7.5 |
6328/C3VL2071 | 140 | 300 | 62 | 265 | 245 | 7.1 | 4800 | 3000 | 18.7 |
6328 M/C3VL2071 | 140 | 300 | 62 | 265 | 245 | 7.1 | 4800 | 4300 | 21.8 |
6230/C3VL2071 | 150 | 270 | 45 | 186 | 166 | 4.9 | 5000 | 3200 | 10 |
6330/C3VL2071 | 150 | 320 | 65 | 286 | 285 | 7.8 | 4300 | 2800 | 23 |
6332 M/C3VL2071 | 160 | 340 | 68 | 291 | 285 | 7.65 | 4000 | 3800 | 31 |
6334 M/C3VL2071 | 170 | 360 | 72 | 332 | 340 | 8.8 | 3800 | 3400 | 35 |
6336 M/C3VL2071 | 180 | 380 | 75 | 371 | 405 | 10.4 | 3600 | 3200 | 41 |

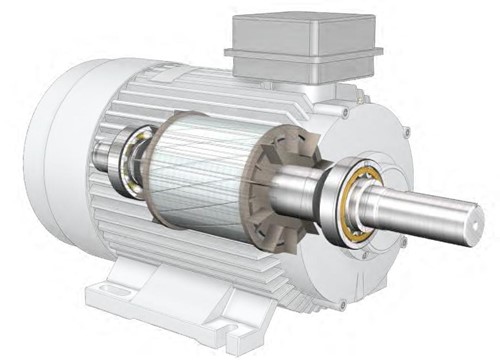

Electrically insulated bearings used in:
• wheelsets and traction motors (rail vehicles)
• DC and AC motors (drivetrains)
• generators (wind power)
