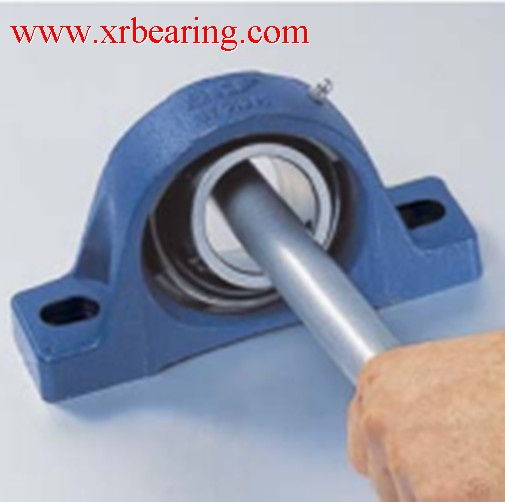

SYJ 90 TF Pillow block ball bearing units
SYJ 518 housing with YAR 218-2F insert bearing
Two-Bolt Pillow Block Unit Setscrew Locking
UCP218 Bearing unit
SYJ90TF Pillow block bearing units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ90TF plummer block unit consist of SYJ518 Housing and YAR218-2F Bearing, SYJ90TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ90TF bearings is widely used in many industrial application, the inner diameter is 90mm, the outer ring is 201mm, the height is 89mm, the weight of SYJ90TF bearings is 14kg, SYJ90TF bearings with a standard inner ring are designed in according with a moduar concept.
Each SYJ90TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
d | 90 mm | |
---|---|---|
d1 | ≈ 112.5 mm | |
A | 88 mm | |
A1 | 54 mm | |
B | 89 mm | |
B4 | 12 mm | |
H | 101.6 mm | |
H1 | 33 mm | |
H2 | 200.5 mm | |
J | 262 mm | |
J | max. 270 mm | |
J | min. 254 mm | |
L | 327 mm | |
N | 27 mm | |
N1 | 35 mm | |
s1 | 54 mm |
Pillow block housing
-- housing with long base for mounting on flat surfaces
-- extremely robust cast iron housing
-- with integrated lubrication nipple, if difficult operating conditions make relubrication necessary
-- the housing is painted to protect against corrosion; the bearing insert and the mounting surface are treated with anti-corrosion oil
