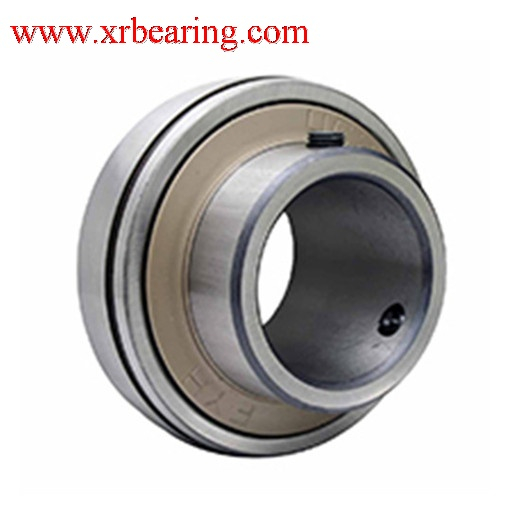

China UEL209 bearing

  • UEL209
  • Bearing UEL209 price

China Plummer Block Bearingpillow block bearing UEL209 Lozysko used in Agricultural

Bearing specification bearing UEL209 Lozysko
inner ring  45 mm
outer ring 85 mm
width 56.3 mm
weight 0.91kg
Set Screw Size 1/4-28UNF
Locking style set screw locking
Type Pillow block bearing & insert bearing
Merial High quality chrome steel,GCR-15
Grade ABEC-1,P0 grade level
Brand XRB
Grease Fitting A-1/4-28UNF

High quality chrome steel Pillow Block Bearing UEL209

Inch size UEL209-111 42.862*85*56.3mm

China quality UEL209 bearing Lozysko has two set screws for shaft and also have a wide inner race and spherical outer race, used in agricultural.conveyor,construction,food and beverage processing,packaging,textile,

High Quality Pillow Block Bearing UEL209 working with Cast Iron Housing(Pillow type), ball ,cage,wide inner ring,Hexagon soket set scrow,outer ring with spherical outside serface ,Seal,Grease hole,slinger ect.  you can see that this bearing have a wide inner ring with set screws for attaching to the shaft,housing is cast iron with a grease zerk for re-lubrication the bearing.

The Bearing UEL209 pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UEL209 pillow block bearings are relubricatable and offer a full-width inner ring for added stability.

The UEL209 pillow block bearing features a positive-contact, three-pieces, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.

The application of UEL209 pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.



XRB bearing is the China Bearing manufacturer & exporter & factory & supplier, Pillow Block Bearing also name insert bearing with housing,it can produce pillow block bearing unit with cast iron housing,pressed steel housing, stainless steel housing. and many kinds of Pillow Block Bearing unit like UCP200 Series,UCPX00 Series,HCAK200 Series, UEP200 Series,SBSP200 Series,SSUCP200 Series,SSUCP200-TP Series,TYPE-E Series, M2000 Series,BLP200 Series, ALP200 Series,UCPH200 Series, UCPA200 Series. we are sure we can supply the good price ,fast delivery and perfect service for all of the bearing distributor and end user.

Pillow Block Bearing UCPP203,UCPP204,UCPP205,UCPP206,UCPP207  can be found here also.

high temperature pillow block bearings UCECH210, UC204 C4HR5, UC205 C4HR5, UC206 C4HR5

UC207 C4HR5 , UC208 C4HR6, UC209 C4HR6,UC210 C3HR6
