China quality Plummer Block Bearing& pillow block bearing UEL205 Lozysko used in Agricultural
| Bearing specification | bearing UEL205 Lozysko |
| inner ring | 25 mm |
| outer ring | 52mm |
| width | 44.4 mm |
| weight | 0.24 |
| Set Screw Size | 1/4-28UNF |
| Locking style | set screw locking |
| Type | Pillow /Plummer block bearing & insert bearing |
| Merial | High quality chrome steel,GCR-15 |
| Grade | ABEC-1,P0 grade level |
| Brand | XRB |
| Grease Fitting | A-1/4-28UNF |

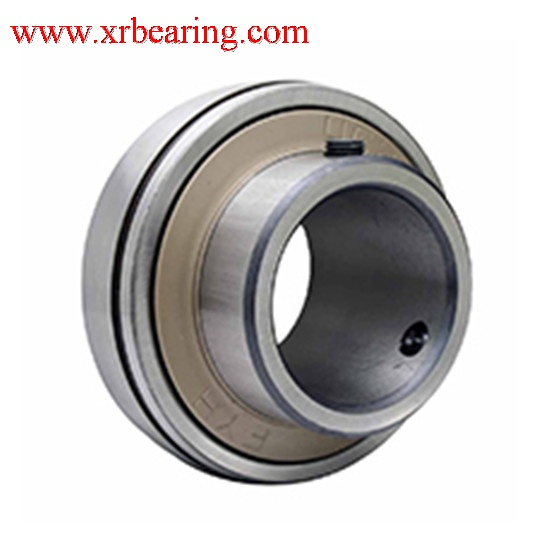

High quality chrome steel Pillow Block Bearing UEL205
China quality UEL205 bearing Lozysko has two set screws for shaft and also have a wide inner race and spherical outer race, used in agricultural.conveyor,construction,food and beverage processing,packaging,textile,
High Quality Pillow Block Bearing UEL205 working with Cast Iron Housing(Pillow type), ball ,cage,wide inner ring,Hexagon soket set scrow,outer ring with spherical outside serface ,Seal,Grease hole,slinger ect. you can see that this bearing have a wide inner ring with set screws for attaching to the shaft,housing is cast iron with a grease zerk for re-lubrication the bearing.
The Bearing UEL205 pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UEL205 pillow block bearings are relubricatable and offer a full-width inner ring for added stability.
The UEL205 pillow block bearing features a positive-contact, three-pieces, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
The application of UEL205 pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
XRB bearing is the China Bearing manufacturer & exporter & factory & supplier, Pillow Block Bearing also name insert bearing with housing,it can produce pillow block bearing unit with cast iron housing,pressed steel housing, stainless steel housing. and many kinds of Pillow Block Bearing unit like UCP200 Series,UCPX00 Series,HCAK200 Series, UEP200 Series,SBSP200 Series,SSUCP200 Series,SSUCP200-TP Series,TYPE-E Series, M2000 Series,BLP200 Series, ALP200 Series,UCPH200 Series, UCPA200 Series. we are sure we can supply the good price ,fast delivery and perfect service for all of the bearing distributor and end user.
Pillow Block Bearing UCPP203,UCPP204,UCPP205,UCPP206,UCPP207 can be found here also.
high temperature pillow block bearings UCECH210, UC204 C4HR5, UC205 C4HR5, UC206 C4HR5
UC207 C4HR5 , UC208 C4HR6, UC209 C4HR6,UC210 C3HR6
more questions,please contact our sales team.
