Availability: | |
---|---|

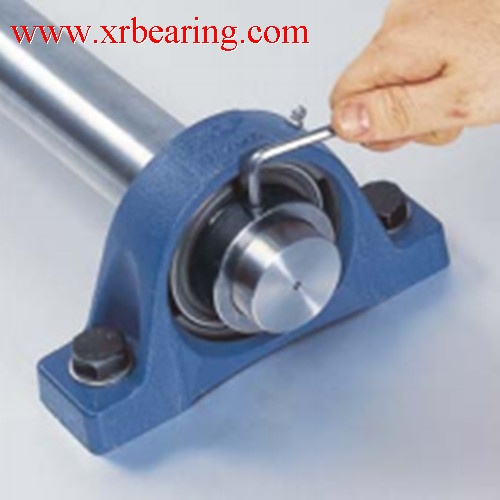

SY35TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY35TF plummer block unit consist of SY507M Housing and YAR207-2F Bearing, SY35TF bearing plummer block unit can accommodate moderate initial misalignment.
SY35TF bearings is widely used in many industrial application, the inner diameter is 35mm, the outer ring is 93mm, the height is 42.9mm, the weight of SY35TF bearings is 1.5kg, SY35TF bearings with a standard inner ring are designed in according with a moduar concept, each SY35TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
d | 35 mm | |
---|---|---|
d1 | ≈ 46.1 mm | |
A | 45 mm | |
A1 | 27 mm | |
A5 | 24.5 mm | |
B | 42.9 mm | |
B4 | 6 mm | |
H | 47.6 mm | |
H1 | 19 mm | |
H2 | 93 mm | |
J | 126 mm | |
J | max. 133 mm | |
J | min. 119 mm | |
L | 160 mm | |
N | 14 mm | |
N1 | 21 mm | |
s1 | 25.4 mm |
E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
