SY 65 TF Pillow block ball bearing units
SY513M housing with YAR213-2F bearing insert
UCP213 Pillow Block Bearing consist of UC213 Bearing with P213 Pillow block
Weight: 5.8kg

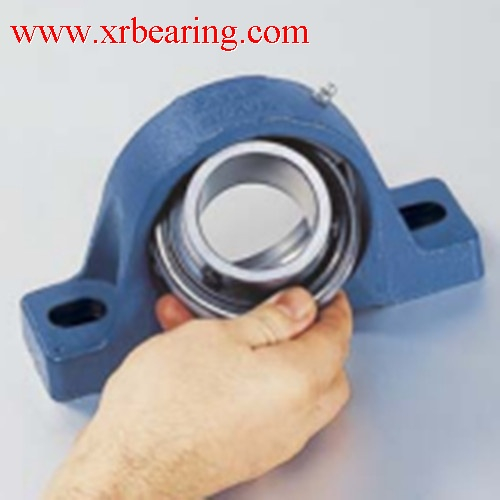

SY65TF pillow block bearing units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY65TF plummer block unit consist of SY513M Housing and YAR213-2F Bearing, SY65TF bearing plummer block unit can accommodate moderate initial misalignment, SY65TF bearings is widely used in many industrial application, the inner diameter is 65mm,the outer ring is 151mm,the height is 68.3mm, the weight of SY65TF bearings is 5.7kg.
SY65TF bearings with a standard inner ring are designed in according with a moduar concept, each SY65TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 65 mm |
| d1 |
| ≈ 82.5 mm |
| A |
| 65 mm |
| A1 |
| 44 mm |
| A5 |
| 39 mm |
| B |
| 68.3 mm |
| B4 |
| 10 mm |
| H |
| 76.2 mm |
| H1 |
| 29 mm |
| H2 |
| 150 mm |
| J |
| 203 mm |
| J |
| max. 216 mm |
| J |
| min. 190 mm |
| L |
| 258 mm |
| N |
| 22 mm |
| N1 |
| 35 mm |
| s1 |
| 42.9 mm
|
Bearing insert / Radial insert ball bearing
· with an inner ring extended on both sides and grub screws (pre-assembled) for fastening the inner ring on a shaft
· smooth running and good behavior in case of tilting due to the extended inner ring
· the compensation of static misalignments is possible up to an angle of 2° due to the spherical outer surface of the outer ring
· two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter
· lubricated for life; under normal operating conditions, relubrication is not necessary
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SY65TF bearings, Our large quantity SY65TF bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order,also the transportation By AIR or By Sea, by Train are all avaiable.we are sure we can ship our SY65TF bearings to your office at the first time.More technical details,please contact with:
