SY17FM bearing is a Y-Bearing Plummer Block Unit with a bearing insert with an eccentric collar, YET2 series. The bearing's dimensions are 17mm Bore Size.
SY 503 M Housing + YET 203 Insert bearing
Weight: 0.52kg

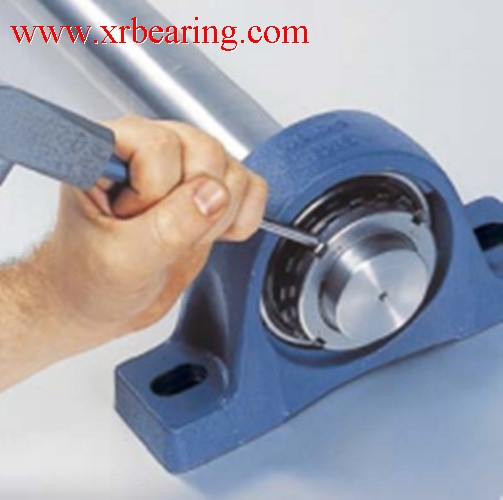

SY17FM bearing plummer block units with a cast housing and an eccentric locking collar, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SY17FM plummer block unit consist of SY503M Housing and YET203 Bearing, SY17FM bearing plummer block unit can accommodate moderate initial misalignment, SY17FM bearings is widely used in many industrial application, the inner diameter is 17mm,the outer ring is 57mm, the height is 28.6mm, the weight of SY17FM bearings is 0.52kg.
SY17FM bearings with a standard inner ring are designed in according with a moduar concept, each SY17FM bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

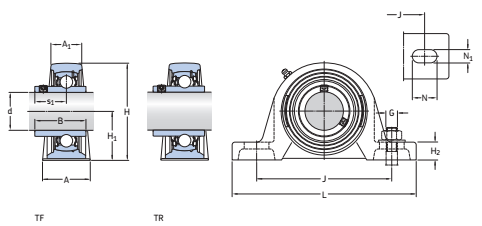

DIMENSIONS
| d |
| 17 mm |
| d1 |
| ≈ 24.2 mm |
| d2 |
| 27.2 mm |
| A |
| 32 mm |
| A1 |
| 18 mm |
| B1 |
| 28.6 mm |
| B4 |
| 4.75 mm |
| H |
| 30.2 mm |
| H1 |
| 14 mm |
| H2 |
| 57 mm |
| J |
| 97 mm |
| J |
| max. 106 mm |
| J |
| min. 88 mm |
| L |
| 127 mm |
| N |
| 11.5 mm |
| N1 |
| 20.5 mm |
| s1 |
| 22.1 mm |
Bearing insert / Radial insert ball bearing
· with an inner ring extended on both sides and grub screws (pre-assembled) for fastening the inner ring on a shaft
· smooth running and good behavior in case of tilting due to the extended inner ring
· the compensation of static misalignments is possible up to an angle of 2° due to the spherical outer surface of the outer ring
· two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter
· lubricated for life; under normal operating conditions, relubrication is not necessary
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SY17FM bearings, Our large quantity SY17FM bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order,also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY17FM bearings to your office at the first time. More technical details, please contact with:
