Cast Iron SY20WF Bearing

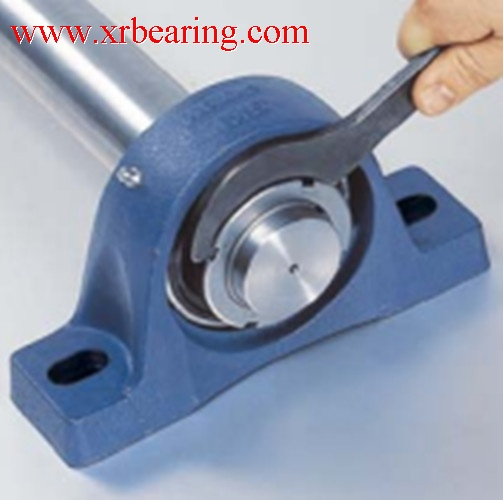

SY20WF bearing plummer block units with a cast housing and an eccentric locking collar, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY20WF plummer block unit consist of SY504M Housing and YEL204-2F Bearing, SY20WF bearing plummer block unit can accommodate moderate initial misalignment, SY20WF bearings is widely used in many industrial application, the inner diameter is 20mm, the outer ring is 65mm,the height is 43.7mm, the weight of SY20WF bearings is 0.62kg, SY20WF bearings with a standard inner ring are designed in according with a moduar concept, each SY20WF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Pillow block housing

-- housing with long base for mounting on flat surfaces

-- extremely robust cast iron housing

-- with integrated lubrication nipple, if difficult operating conditions make relubrication necessary

-- the housing is painted to protect against corrosion; the bearing insert and the mounting surface are treated with anti-corrosion oil
