Cast Iron SY3/4TF Bearing

SY3/4TF bearing is a Y-Bearing Plummer Block Unit with a bearing insert with grub screws, YAR2-2F series. The bearing's dimensions are 19.05mm Bore Size.
INSIDE DIAMETER (INCH):3/4 INCH
DYNAMIC LOAD RATING (KN):12.7
STATIC LOAD RATING (KN):6.55
FATIGUE LOAD RATING (KN):0.28
LIMITING SPEED RATING (R/MIN):8500
BEARING INSERT:YAR204-012-2F

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SY3/4TF
  • EASIER
  • YAR204-012-2F
  • SY3/4TF
  • USD$7-10

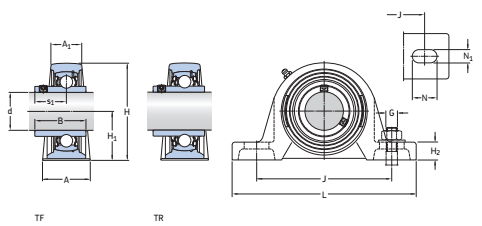

SY3/4TF - Y-Bearing Plummer Block Unit

TF=Y-Bearing Of Series YAR2-2F (Inner Ring Extended At Both Sides, Grub Screw Locking), Standard Seal And Plain Flinger At Each Side.




SY3/4TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY3/4TF plummer block unit consist of SY504M Housing and YAR204-012-2F Bearing, SY3/4TF bearing plummer block unit can accommodate moderate initial misalignment, SY3/4TF bearings is widely used in many industrial application, the inner diameter is 19.05mm, the outer ring is 65mm, the height is 31mm, the weight of SY3/4TF bearings is 1.23kgSY3/4TF bearings with a standard inner ring are designed in according with a moduar concept, each SY3/4TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.


Ball Bearing Unit is a kind of bearing unit which combines rolling bearing with bearing housing. Most of the Ball Bearing Unit are made of spherical surface, and are installed with bearing pedestal with spherical inner holes. They have various structure forms, good universality and interchangeability. The internal structure of outer spherical bearing is the same as that of deep groove ball bearing.


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SY3/4TF bearings, Our large quantity SY3/4TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order,also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY3/4TF bearings to your office at the first time. More technical details, please contact with:
