Availability: | |
---|---|

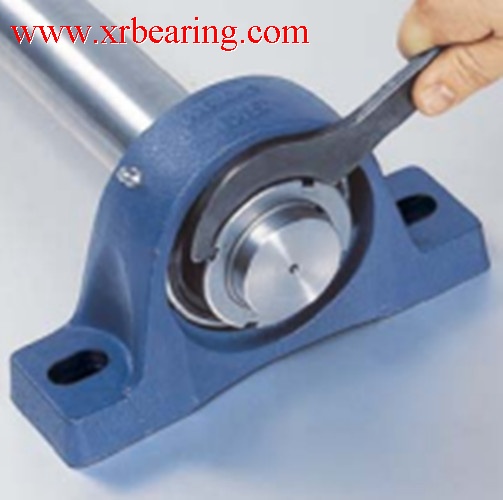

SY30TR bearing plummer block bearing units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY30TR plummer block unit consist of SY506M Housing and YAR206-2F Bearing, SY30TR bearing plummer block unit can accommodate moderate initial misalignment, SY30TR bearings is widely used in many industrial application, the inner diameter is 30mm, the outer ring is 82.5mm,the height is 38.1mm, the weight of SY30TR bearings is 1.1kg, SY30TR bearings with a standard inner ring are designed in according with a moduar concept.
Each SY30TR bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
d | 30 mm | |
---|---|---|
d1 | ≈ 39.7 mm | |
A | 40 mm | |
A1 | 25 mm | |
A5 | 22.5 mm | |
B | 38.1 mm | |
B4 | 5 mm | |
H | 42.9 mm | |
H1 | 17 mm | |
H2 | 82 mm | |
J | 117.5 mm | |
J | max. 127 mm | |
J | min. 108 mm | |
L | 152 mm | |
N | 14 mm | |
N1 | 23.5 mm | |
s1 | 22.2 mm |
Plummer block bearing units do not accommodate axial dis-placement of the shaft and are therefore not normally suitable for non-locating bearing (free unit) arrangements. The distance between bearing positions should therefore be short or the units should be supported by resilient sheet metal support surfaces or walls to prevent them from being subjected to excessive stresses as a result of thermal elongation of the shaft.
E-mail: sales@xrbearing.com
brandbearings@gmail.com,
Skype:brandbearings
Tel/whatsapp: 0086-13280450757
www.xrbearing.com
