Keywords:SY55TF bearing Plummer block housing unit,SY55TF bearings

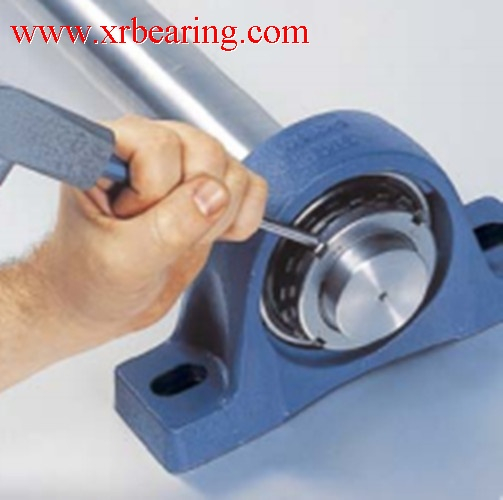

SY55TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY55TF plummer block unit consist of SY511M Housing and YAR211-2F Bearing, SY55TF bearing plummer block unit can accommodate moderate initial misalignment, SY55TF bearings is widely used in many industrial application, the inner diameter is 55mm, the outer ring is 126mm, the height is 55.6mm, the weight of SY55TF bearings is 3.7kg, SY55TF bearings with a standard inner ring are designed in according with a moduar concept.
Each SY55TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 55 mm |
| d1 |
| ≈ 69.06 mm |
| A |
| 60 mm |
| A1 |
| 40 mm |
| A5 |
| 37.5 mm |
| B |
| 55.6 mm |
| B4 |
| 9 mm |
| H |
| 63.5 mm |
| H1 |
| 24 mm |
| H2 |
| 126 mm |
| J |
| 171.5 mm |
| J |
| max. 181 mm |
| J |
| min. 162 mm |
| L |
| 219 mm |
| N |
| 18 mm |
| N1 |
| 27.5 mm |
| s1 |
| 33.4 mm |
China Ball Bearing Units are tapped to accept a grease fitting which is also supplied with every mounted unit. Bearings are pre-lubricated at the factory and do not require additional grease upon installation. When operating in excessively moist, dusty, or hot environments, it is recommended that grease be supplied at regular intervals. If appropriately maintained, the rated life of the bearing can be extended.
China Lithium Bearing Grease to be sealed in early bearing grease use are manufactured to accommodate a wide range of operating conditions.
XRB as the experienced China bearing manufacturer & factory & exporter & supplier ,it can supply Original SY55TF bearings,Our large quantity SY55TF bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our SY55TF bearings to your office at the first time.More technical details,please contact with:
