Cast Iron SYH1.15/16TF Bearing

SYH1.15/16TF Y-bearing units

SYH510U Housing and YAR210-115-2F Bearing

Weight: 2.9kg

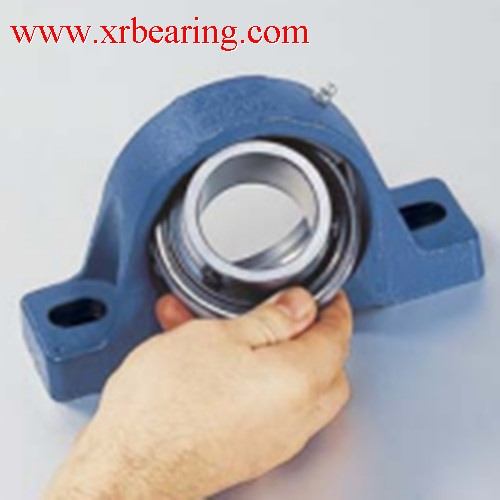

SYH1.15/16TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYH1.15/16TF plummer block unit consist of SYH510U Housing and YAR210-115-2F Bearing, SYH1.15/16TF bearing plummer block unit can accommodate moderate initial misalignment, SYH1.15/16TF bearings is widely used in many industrial application, the inner diameter is 49.212mm, the outer ring is 113.5mm, the height is 51.6mm, the weight of SYH1.15/16TF bearings is 2.9kg.

SYH1.15/16TF bearings with a standard inner ring are designed in according with a moduar concept, each SYH1.15/16TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Pillow Block Ball Bearing Units are tapped to accept a grease fitting which is also supplied with every mounted unit. Bearings are pre-lubricated at the factory and do not require additional grease upon installation. When operating in excessively moist, dusty, or hot environments, it is recommended that grease be supplied at regular intervals. If appropriately maintained, the rated life of the bearing can be extended. FYH Lithium Bearing Grease to be sealed in early bearing grease use are manufactured to accommodate a wide range of operating conditions.
