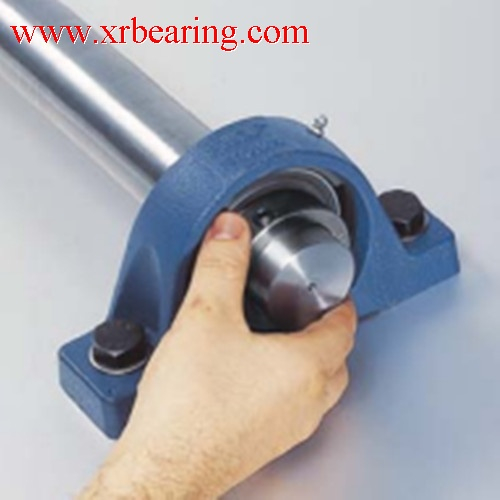

Cast Iron SYJ2.TF Bearing

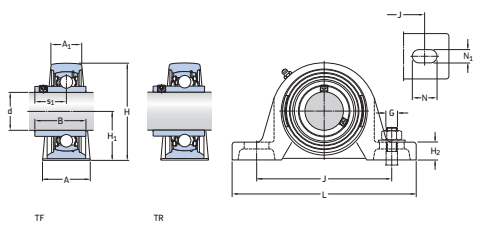

SYJ 2. TF Pillow block ball bearing units

SYJ511 Housing and YAR211-200-2F Bearing

Weight: 3.85kg

SYJ2.TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SYJ2.TF plummer block unit consist of SYJ511 Housing and YAR211-200-2F Bearing, SYJ2.TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ2.TF bearings is widely used in many industrial application, the inner diameter is 50.8mm,the outer ring is 126mm, the height is 55.6mm, the weight of SYJ2.TF bearings is 3.85kg.

SYJ2.TF bearings with a standard inner ring are designed in according with a moduar concept, each SYJ2.TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Bearing insert / Radial insert ball bearing

· with an inner ring extended on both sides and grub screws (pre-assembled) for fastening the inner ring on a shaft

· smooth running and good behavior in case of tilting due to the extended inner ring

· the compensation of static misalignments is possible up to an angle of 2° due to the spherical outer surface of the outer ring

· two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter

· lubricated for life; under normal operating conditions, relubrication is not necessary
