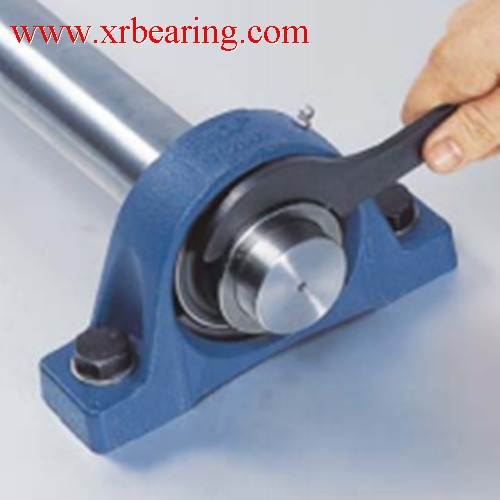

Cast Iron SYJ30TF Bearing Unit

SYJ30TF bearing Plummer block housing unit
YAR 206-2F bearing insert with SYJ 506 pillow block bearing

E-mail: sales@xrbearing.com
brandbearings@gmail.com,
Skype:brandbearings
Tel/whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SYJ30TF
  • EASIER
  • SYJ 506
  • Cast Iron housing with insert bearing
  • Bearing SYJ30TF price
Keywords:SYJ30TF bearing Plummer block housing unit, SYJ30TF bearing Unit


SYJ30TF pillow block bearing units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ30TF plummer block unit consist of SYJ506 Housing and YAR206-2F Bearing, SYJ30TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ30TF bearings is widely used in many industrial application, the inner diameter is 30mm, the outer ring is 82.5mm,the height is 38.1mm, the weight of SYJ30TF bearings is 1.1kgSYJ30TF bearings with a standard inner ring are designed in according with a moduar concept, each SYJ30TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Dimensions - SYJ 30 TF Dimensions - SYJ 30 TF Dimensions - SYJ 30 TF

DIMENSIONS

d
30 mm
d1
≈ 39.7 mm
A
42 mm
A1
27 mm
B
38.1 mm
B4
5 mm
H
42.9 mm
H1
16 mm
H2
82 mm
J
118 mm
J
max. 125 mm
J
min. 111 mm
L
165 mm
N
17 mm
N1
24 mm
s1
22.2 mm


The China Y-bearing unit assortment is extensive. It includes three designs with a choice of three different materials for the housing and a variety of Y-bearings that can be locked onto the shaft in very different ways. Because of their design, each Y-bearing unit exhibits characteristic features that make it more or less suitable for a specific application.


XRB as the experienced China bearing manufacturer
 & factory & exporter & supplier, it can supply Original SYJ30TF bearings, Our large quantity SYJ30TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ30TF bearings to your office at the first time. More technical details, please contact with :
