Cast Iron SYM1.1/2TF Bearing

SYM1.1/2TF- Y-Bearing Plummer Block Unit - 38.1mm - Bore Size

SYM509U Housing and YAR209-108-2F Bearing

Weight: 2.55kg

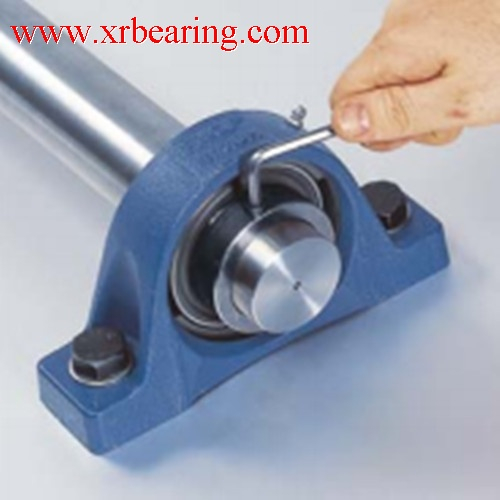

SYM1.1/2TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYM1.1/2TF plummer block unit consist of SYM509U Housing and YAR209-108-2F Bearing, SYM1.1/2TF bearing plummer block unit can accommodate moderate initial misalignment,SYM1.1/2TF bearings is widely used in many industrial application, the inner diameter is 38.1mm, the outer ring is 108mm, the height is 49.2mm, the weight of SYM1.1/2TF bearings is 2.55kg,

SYM1.1/2TF bearings with a standard inner ring are designed in according with a moduar concept, each SYM1.1/2TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Ball Bearing Unit is a kind of bearing unit which combines rolling bearing with bearing housing. Most of the Ball Bearing Unit are made of spherical surface, and are installed with bearing pedestal with spherical inner holes. They have various structure forms, good universality and interchangeability. The internal structure of outer spherical bearing is the same as that of deep groove ball bearing.
