China SY1.3/8TF Bearing

SY1.3/8TF-Y-Bearing Plummer Block Unit - 34.925mm - Bore Size
SY507U Housing and YAR207-106-2RF Bearing
Weight: 1.5kg

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SY1.3/8TF
  • EASIER
  • YAR207-106-2RF
  • SY1.3/8TF
  • USD$6

SY1.3/8TF-Y-Bearing Plummer Block Unit - 34.925mm - Bore Size

SY507U Housing and YAR207-106-2RF Bearing

Weight: 1.5kg

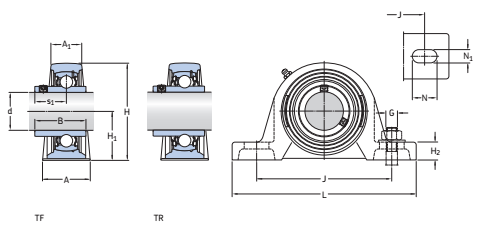

SY1.3/8TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY1.3/8TF plummer block unit consist of SY507U Housing and YAR207-106-2RF Bearing, SY1.3/8TF bearing plummer block unit can accommodate moderate initial misalignment, SY1.3/8TF bearings is widely used in many industrial application, the inner diameter is 34.925mm, the outer ring is 93mm,the height is 42.9mm, the weight of SY1.3/8TF bearings is 1.5kg.


SY1.3/8TF bearings with a standard inner ring are designed in according with a moduar concept, each SY1.3/8TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

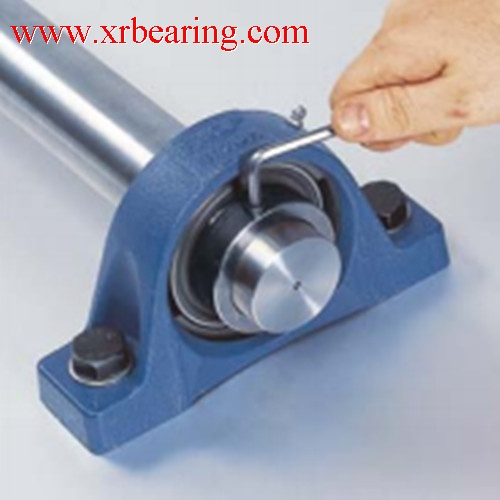

Pillow Block Ball Bearing Units interchange with many different models and can be bolted to machinery without any

modification. The exact amount of clearance is allowed between the bore and the shaft to allow a perfect fit.

Therefore, FYH Ball Bearing Units do not require any additional lubrication or seal installation. As a result,

handling and downtime can be drastically reduced. Four different locking mechanisms are available:

(1) Set Screw

(2) Eccentric Locking Collar

(3) Tapered Adapter

(4) Concentric Collar


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SY1.3/8TF bearings, Our large quantity SY1.3/8TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY1.3/8TF bearings to your office at the first time.More technical details, please contact with:
