Keywords:SY30TF bearing Plummer block housing unit, SY30TF bearings

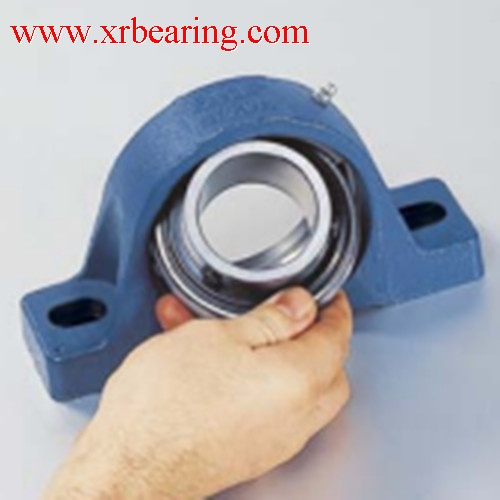

SY30TF bearing pillow block bearing units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY30TF plummer block unit consist of SY506M Housing and YAR206-2F Bearing, SY30TF bearing plummer block unit can accommodate moderate initial misalignment, SY30TF bearings is widely used in many industrial application, the inner diameter is 30mm, the outer ring is 82.5mm, the height is 38.1mm, the weight of SY30TF bearings is 1.1kg, SY30TF bearings with a standard inner ring are designed in according with a moduar concept, each SY30TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 30 mm |
| d1 |
| ≈ 39.7 mm |
| A |
| 40 mm |
| A1 |
| 25 mm |
| A5 |
| 22.5 mm |
| B |
| 38.1 mm |
| B4 |
| 5 mm |
| H |
| 42.9 mm |
| H1 |
| 17 mm |
| H2 |
| 82 mm |
| J |
| 117.5 mm |
| J |
| max. 127 mm |
| J |
| min. 108 mm |
| L |
| 152 mm |
| N |
| 14 mm |
| N1 |
| 23.5 mm |
| s1 |
| 22.2 mm |
THREADED HOLE | RG |
| 1/4-28 UNF |
| R1 |
| 3 mm |
| Rα |
| 45 °
|
Insert ball bearings with housing are preferred for applications requiring simple equipment and components, such as agricultural machinery, transportation systems, or construction machinery.
It is mainly used to bear the combined radial and axial load mainly based on the radial load. Generally, it is not suitable to bear the axial load alone. This kind of bearing can be installed with inner ring (with full set of rollers and retainers) and outer ring respectively. This kind of bearing does not allow the shaft to tilt relative to the shell, and will generate additional axial force under the radial load. The axial clearance of this kind of bearing has a great influence on the normal operation of the bearing. When the axial clearance is too small, the temperature rise is high; when the axial clearance is large, the bearing is easy to be damaged. Therefore, special attention shall be paid to adjusting the axial clearance of the bearing during installation and operation, and pre interference installation can be conducted if necessary to increase the rigidity of the bearing.
XRB as the experienced China bearing manufacturer & factory & exporter & supplier ,it can supply Original SY30TF bearings,Our large quantity SY30TF bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our SY30TF bearings to your office at the first time.More technical details,please contact with :
