China SY45TR Y Bearing Unit

• Item Number: SY45TR Bearing

• Technical details (TR)TR=Y-Bearing Of Series YAR2-2RF (Inner Ring Extended At Both Sides, Grub Screw Locking), Standard Seal And Rubberized Flinger At Each Side.

• Also known as7316571024905
  YAR209-2RF + SY509M

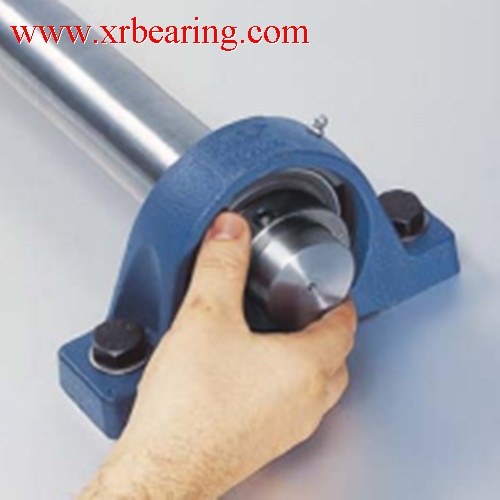

SY45TR bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY45TR plummer block unit consist of SYJ509 Housing and YAR209-2RF Bearing, SY45TR bearing plummer block unit can accommodate moderate initial misalignment,SY45TR bearings is widely used in many industrial application, the inner diameter is 45mm, the outer ring is 107.5mm, the height is 49.2mm, the weight of SY45TR bearings is 2.4kg

Ball bearing units are referred to as Y-bearing units. These units consist of :

• an insert bearing (a single row deep groove ball bearing) with a convex sphered outside diameter

• a housing, which has a correspondingly sphered but concave bore Y-bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

They are ready-to-mount, ready-to-use units

1 and available as:

• Y-bearing plummer block units

• Flanged Y-bearing units

• Y-bearing take-up units

2. The housings are available in:

• composite material

• grey cast iron

• sheet steel

SY45TR bearings with a standard inner ring are designed in according with a moduar concept, each SY45TR bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
