SYJ 70 TF Pillow block ball bearing units
SYJ 514 pillow block with YAR 214-2F insert bearing
Pillow Block Housing Unit UCP214 - Shaft: 70 mm
RASEY 70-XL Plummer Block Housing Units
Weight: 6kg
SYJ70TF Pillow block bearing units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ70TF plummer block unit consist of SYJ514 Housing and YAR21J-2F Bearing, SYJ70TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ70TF bearings is widely used in many industrial application, the inner diameter is 70mm, the outer ring is 156mm, the height is 69.9mm, the weight of SYJ70TF bearings is 6.2kg, SYJ70TF bearings with a standard inner ring are designed in according with a moduar concept.
Each SYJ70TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 70 mm |
| d1 |
| ≈ 87.05 mm |
| A |
| 72 mm |
| A1 |
| 46 mm |
| B |
| 69.9 mm |
| B4 |
| 12 mm |
| H |
| 79.4 mm |
| H1 |
| 27 mm |
| H2 |
| 155.5 mm |
| J |
| 210 mm |
| J |
| max. 215 mm |
| J |
| min. 205 mm |
| L |
| 266 mm |
| N |
| 25 mm |
| N1 |
| 30 mm |
| s1 |
| 39.7 mm |
Features of pillow block bearing unit
consisting of a ball bearing insert UC 214 and a cast iron housing P 214
suitable for mounting on flat surfaces and high radial load capacities
the housing is made of cast iron and therefore inexpensive and robust
the bearing insert has an extended inner ring with grub screws

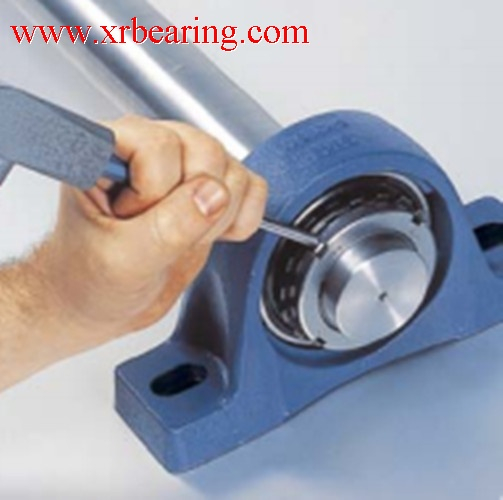

The pillow block bearing is mounted on the shaft with two grub screws
smooth running and good behavior with tilting due to the extended inner ring
static misalignments can be compensated up to an angle of 2°
two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter
lubricated for life; under normal operating conditions relubrication is not required
housing with integrated lubrication hole
to protect against corrosion, the housing is painted; the bearing insert and the mounting surface are treated with corrosion protection oil
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SYJ70TF bearings, Our large quantity SYJ70TF bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ70TF bearings to your office at the first time. More technical details, please contact with:
