SY45TF
EASIER
YAR209-2F
SY509M
Bearing SY45TF price

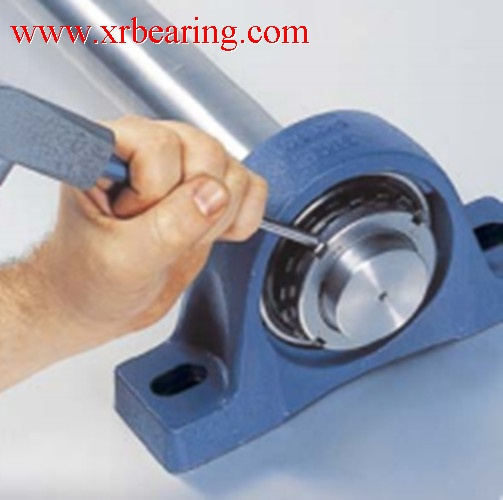

SY45TF pillow block bearing with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY45TF plummer block unit consist of SY509M Housing and YAR209-2F Bearing, SY45TF bearing plummer block unit can accommodate moderate initial misalignment, SY45TF bearings is widely used in many industrial application, the inner diameter is 45mm, the outer ring is 107.5mm, the height is 49.2mm, the weight of SY45TF bearings is 2.4kg, SY45TF bearings with a standard inner ring are designed in according with a moduar concept.
Each SY45TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
d | 45 mm | |
---|---|---|
d1 | ≈ 56.8 mm | |
A | 48 mm | |
A1 | 32 mm | |
A5 | 26.5 mm | |
B | 49.2 mm | |
B4 | 8 mm | |
H | 54 mm | |
H1 | 21 mm | |
H2 | 107 mm | |
J | 143.5 mm | |
J | max. 152 mm | |
J | min. 135 mm | |
L | 187 mm | |
N | 14 mm | |
N1 | 22.5 mm | |
s1 | 30.2 mm |
