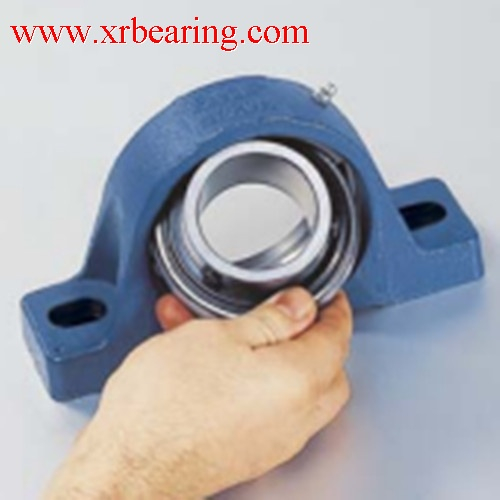

Heavy Duty SY1.1/4TF Bearing

Pillow Block Ball Bearing Unit - Two-Bolt Base, 1.2500 in Bore, Cast Iron Material

SY 507 M Housing + YAR 207-104-2F Bearing

Weight: 1.5kg

SY1.1/4TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SY1.1/4TF plummer block unit consist of SY507M Housing and YAR207-104-2F/AH Bearing, SY1.1/4TF bearing plummer block unit can accommodate moderate initial misalignment,SY1.1/4TF bearings is widely used in many industrial application, the inner diameter is 31.75mm,the outer ring is 93mm,the height is 42.9mm, the weight of SY1.1/4TF bearings is 1.5kg.

SY1.1/4TF bearings with a standard inner ring are designed in according with a moduar concept, each SY1.1/4TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Pillow block housing

-- housing with long base for mounting on flat surfaces

-- extremely robust cast iron housing

-- with integrated lubrication nipple, if difficult operating conditions make relubrication necessary

-- the housing is painted to protect against corrosion; the bearing insert and the mounting surface are treated with anti-corrosion oil
