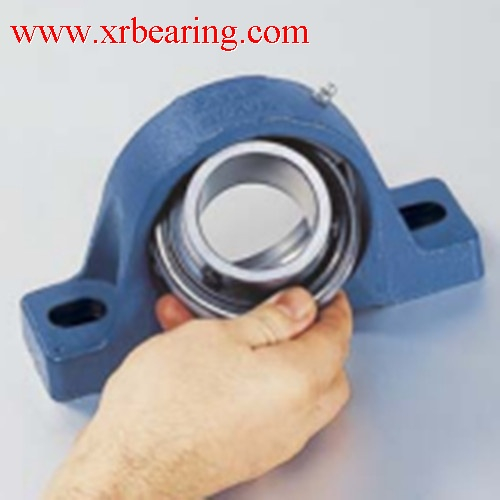

Heavy Duty SY1.1/8TF Y Bearing

SY1.1/8TF Y-Bearing Plummer Block Unit - 28.575mm - Bore Size

YAR206-102-2F + SY506M

Weight: 1.2kg

SY1.1/8TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY1.1/8TF plummer block unit consist of SY506U Housing and YAR205-102-2F Bearing, SY1.1/8TF bearing plummer block unit can accommodate moderate initial misalignment, SY1.1/8TF bearings is widely used in many industrial application, the inner diameter is 28.575mm, the outer ring is 82mm,the height is 38.1mm, the weight of SY1.1/8TF bearings is 1.2kg.

SY1.1/8TF bearings with a standard inner ring are designed in according with a moduar concept,each SY1.1/8TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Pillow block housing

-- housing with long base for mounting on flat surfaces

-- extremely robust cast iron housing

-- with integrated lubrication nipple, if difficult operating conditions make relubrication necessary

-- the housing is painted to protect against corrosion; the bearing insert and the mounting surface are treated with anti-corrosion oil
