High Precision SY35TR Bearing

Availability:
  • SY35TR
  • EASIER
  • Mounted ball bearing
  • Online quote the good price
Keywords:SY35TR bearing Plummer block housing unit, SY35TR bearings


SY35TR bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY35TR plummer block unit consist of SY507M Housing and YAR207-2RF Bearing, SY35TR bearing plummer block unit can accommodate moderate initial misalignment,SY35TR bearings is widely used in many industrial application, the inner diameter is 35mm, the outer ring is 93mm,the height is 42.9mm, the weight of SY35TR bearings is 1.5kgSY35TR bearings with a standard inner ring are designed in according with a moduar concept.


Each SY35TR bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.


Dimensions - SY 30 TR Dimensions - SY 30 TR Dimensions - SY 30 TR

DIMENSIONS

d
30 mm
d1
≈ 39.7 mm
A
40 mm
A1
25 mm
A5
22.5 mm
B
38.1 mm
B4
5 mm
H
42.9 mm
H1
17 mm
H2
82 mm
J
117.5 mm
J
max. 127 mm
J
min. 108 mm
L
152 mm
N
14 mm
N1
23.5 mm
s1
22.2 mm
THREADED HOLE
RG
1/4-28 UNF
R1
3 mm

45 °
GREASE FITTING
DN
6.5 mm
SWN
7 mm
GN
1/4-28 SAE-LT
DOWEL PINS
J6
140 mm
J7
14 mm
N4
4 mm

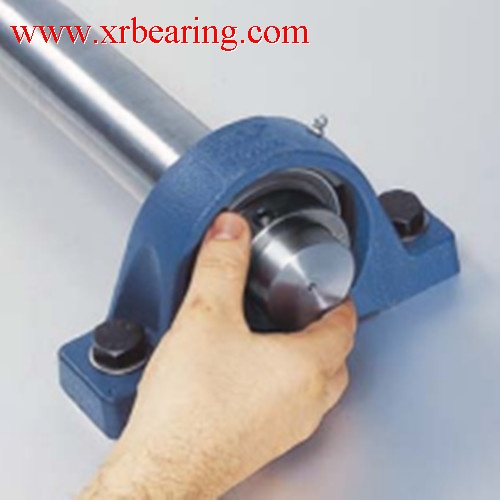

Mounting instructions for pillow block bearing units with a composite or cast housing and grub screws



1 Mount any components that are on the shaft between the two Y-bearing units.

2 Slide the Y-bearing plummer (pillow) block unit onto the shaft with its locking device facing outwards.

3 Position the Y-bearing unit on the support surface. Fit the attachment bolts or nuts but do not tighten them.

4 Mount the other Y-bearing plummer block unit on the other end of the shaft, following steps 2 and 3.

5 Carefully align both Y-bearing units, using the shaft. Fully tighten the attachment bolts or nuts in the housing base.

6 Align the shaft in the bearing arrangement axially and – if possible – turn it a few times.

7 Tighten the grub screws in the inner rings of both units to the tighten

8 If applicable, snap the end cover(s) into place.


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SY35TR bearings, Our large quantity SY35TR bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our SY35TR bearings to your office at the first time.More technical details, please contact with :
