Pillow Block Ball Bearing Unit - Two-Bolt Base, 1.4375 in Bore, Cast Iron Material
SY 505 M Housing + YAR 205-100-2F insert bearing
Weight: 0.71kg

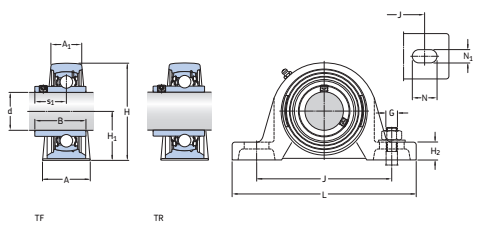

SY1.TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY1.TF plummer block unit consist of SY505M Housing and YAR205-100-2F Bearing, SY1.TF bearing plummer block unit can accommodate moderate initial misalignment, SY1.TF bearings is widely used in many industrial application, the inner diameter is 25.4mm, the outer ring is 70.5mm, the height is 34.1mm, the weight of SY1.TF bearings is 0.71kg.
SY1.TF bearings with a standard inner ring are designed in according with a moduar concept, each SY1.TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
Pillow block bearing unit with a cast housing and an eccentric locking collar
1 Mount any components that are on the shaft between the two Y-bearing units.
2 With the eccentric locking collar removed, slide the Y-bearing plummer block unit onto the shaft with the locking device facing outwards.
3 Position the Y-bearing unit on the support surface. Fit the attachment bolts or nuts but do not tighten them.
4 Mount the other Y-bearing plummer block unit on the other end of the shaft, following steps 2 and 3.
5 Carefully align both Y-bearing units, using the shaft. Fully tighten the attachment bolts or nuts in the housing base.
6 Align the shaft in the bearing arrangement axially and – if possible – turn it a few times.
7 Place the eccentric locking collars on the inner ring extension of both Y-bearing units and snug tighten them in the main direction of rotation

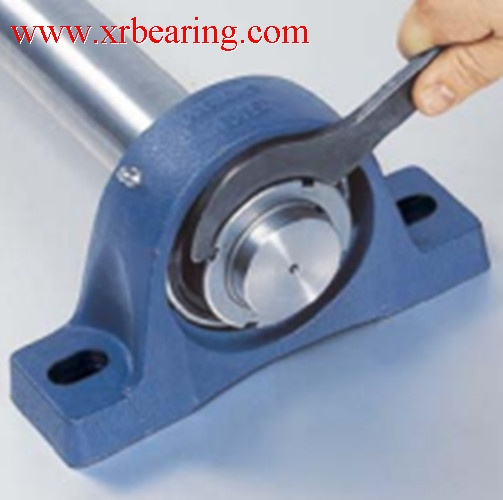

8 Tighten the locking collars to their final position, using a hook spanner with a stud engaging the hole in the circumference of the collar
9 Tighten the grub screw in the eccentric locking collar of both Y-bearing units
10 If applicable, snap the end cover(s) into place.
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SY1.TF bearings, Our large quantity SY1.TF bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY1.TF bearings to your office at the first time. More technical details, please contact with :
