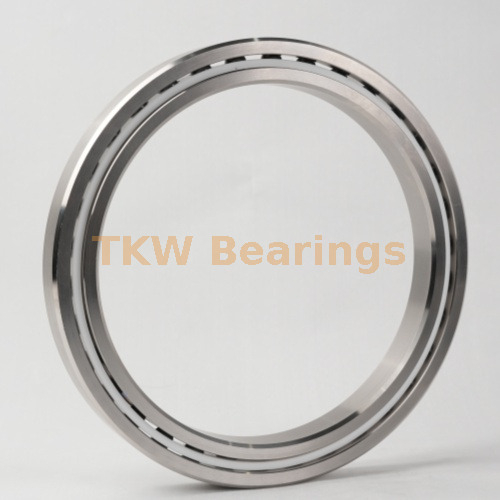

Thin section bearings.
Alternative to Kaydon.
Accuracy class:P5/P4/P2 level
Dimensions: 50.8*66.675*7.9375mm
Weight: 0.068kg
Bearing ring material: AISI 52100 High Carbon Chromium Bearing Steel(440C Stainless Steel)
Retainer: brass
Rolling element: AISI 52100 steel ball

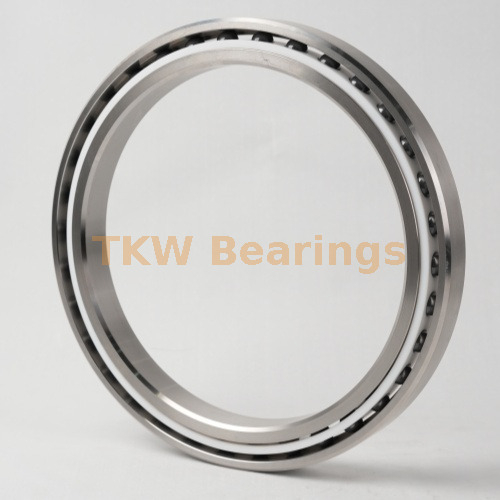

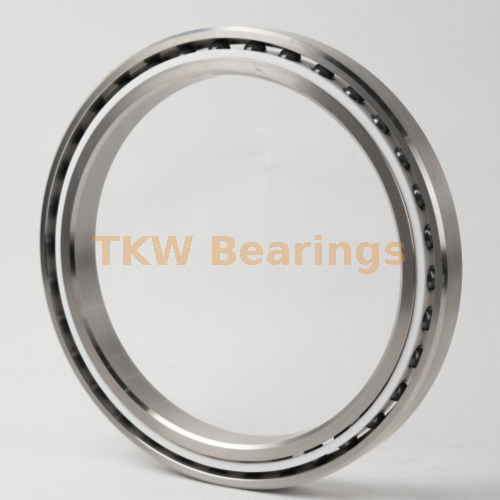

Structure: Single-row angular contact ball bearings
Dimensions in Inches | Capacities in Pounds |
Approx.Wt. In lbs. |
Size

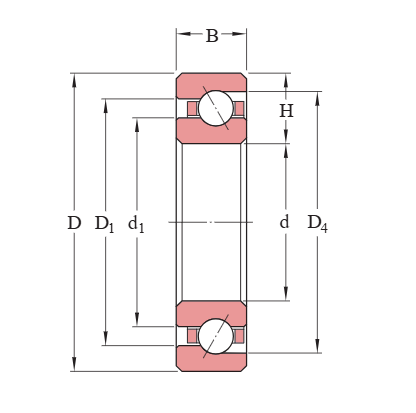

| Land Diameters | Dynamic | Static |
Bore | Outside Dia. | L1 | L2 | C’BoreL3 | ISO Radial | Thrust | Radial | Thrust |
2.000 | 2.625 | 2.231 | 2.393 | 2.464 | 1,520 | 1,380 | 1,090 | 3,150 | .15 |
Three main materials are used for thin Section Bearings.The standard model features high-carbon chromium bearing steel for the inner and outer rings and rolling elements, making it suitable for conventional drying conditions.The corrosion-resistant version features stainless steel inner and outer rings and rolling elements, making it suitable for humid and corrosive working environments.The ceramic hybrid version adopts a composite structure, with the inner and outer rings made of bearing steel and the rolling elements made of ceramic material, making it suitable for special working conditions such as high speed, low friction, and high temperature resistance.All cages are typically made of nylon or brass and are responsible for separating and positioning the rolling elements, providing structural support for stable bearing operation.
Thin Section Bearings provide a uniform load distribution during dynamic operation, making them suitable for medium- and high-speed, medium- and small-scale alternating load conditions.P4 and P5 levels correspond to different rotational runout limits, and the vibration amplitude is controllable during high-speed operation.The rolling elements and raceways maintain stable contact, resulting in low frictional loss and a gradual temperature rise during continuous operation.The internal lubricating film can be maintained intact under dynamic pressure, effectively preventing dry friction.There are no obvious shocks or abnormal noises during start-up, shutdown, and speed change. The dynamic response is stable and it can maintain operating accuracy for a long time, making it suitable for various transmission mechanisms for continuous operation.
Application Areas:
1. Precision Automation and Robotics
2. Food/Pharmaceutical/Medical Equipment (Clean and Corrosion Protection)
3. Semiconductor/Electronics Manufacturing Equipment (Dust-Free, High-Speed)
4. Marine/Outdoor/Corrosion-Resistant Equipment
5. High-Speed Light Industrial/General Precision Machinery
6. Aerospace/Military Precision Components
