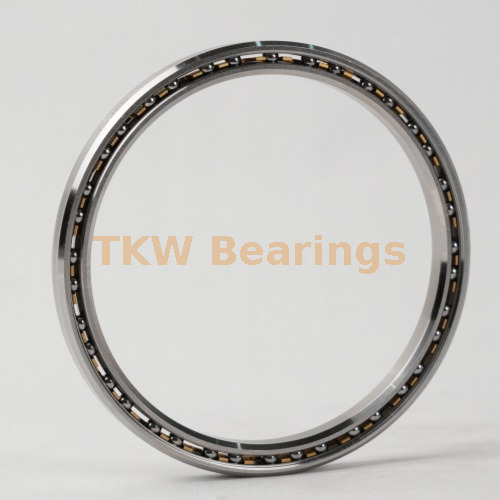

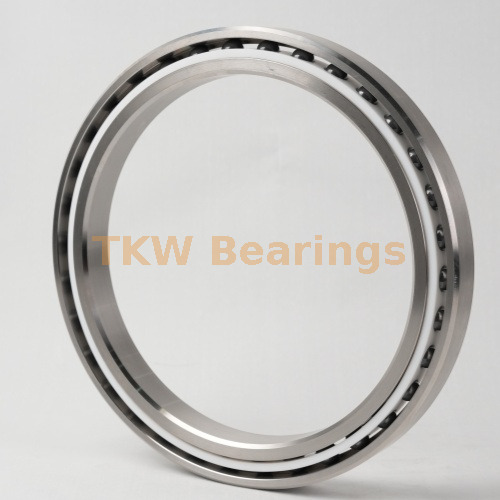

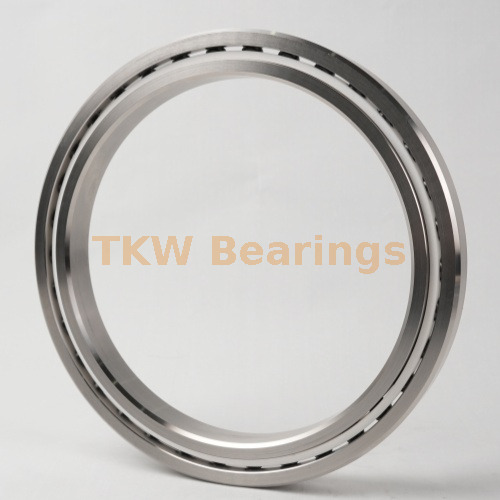

KB042AR0 High-precision Lightweight Slim Section Bearings for Rotary Applications

The KB042AR0 is an open angular contact bearing with a Thin section. It comes standard with steel bearing rings, a brass cage, and steel balls, and can withstand both radial and unidirectional axial loads.It is compatible with various precision rotating devices such as robots, optical instruments, and medical devices.

The mainstream precision grades for thin Section Bearings are P4 and P5.The inner diameter, outer diameter, and width tolerances of P5 grade bearings are within the normal range, and the raceway form and position deviations, radial and axial run-outs meet general usage requirements.P4 grade is a high-precision specification with narrower dimensional tolerances, higher raceway geometric accuracy, and significantly reduced radial and axial run-out.The two grades of parameters are clearly defined, and all accuracy indicators are implemented in accordance with the specifications, ensuring a high degree of uniformity in the accuracy performance of bearings of the same grade.

Thin Section Bearings provide a uniform load distribution during dynamic operation, making them suitable for medium- and high-speed, medium- and small-scale alternating load conditions.P4 and P5 levels correspond to different rotational runout limits, and the vibration amplitude is controllable during high-speed operation.The rolling elements and raceways maintain stable contact, resulting in low frictional loss and a gradual temperature rise during continuous operation.The internal lubricating film can be maintained intact under dynamic pressure, effectively preventing dry friction.There are no obvious shocks or abnormal noises during start-up, shutdown, and speed change. The dynamic response is stable and it can maintain operating accuracy for a long time, making it suitable for various transmission mechanisms for continuous operation.

Based on standardized processing technology, the structural stability of thin Section Bearings is outstanding.The materials and dimensional accuracy of the raceways and rolling elements are uniform, and no localized abnormal wear will occur during long-term operation.The sealed structure effectively isolates dust and moisture, preventing internal parts from rusting or jamming.Within the rated speed and load range, key indicators such as radial run-out and coaxiality change little after repeated operation, and are within acceptable limits.The grease has a stable distribution, and the oil film can function for a long time, greatly reducing component wear.The product's performance fluctuates little throughout its entire lifecycle and can be used for extended periods.
