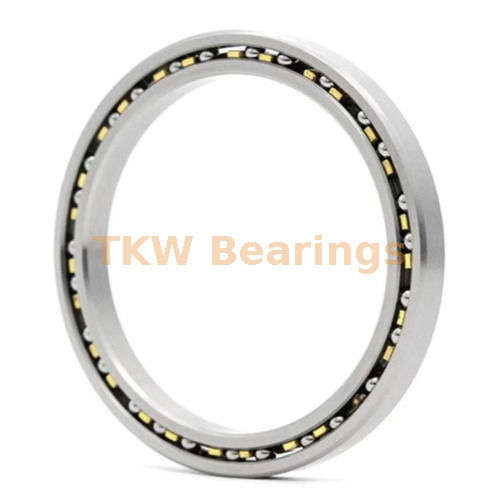

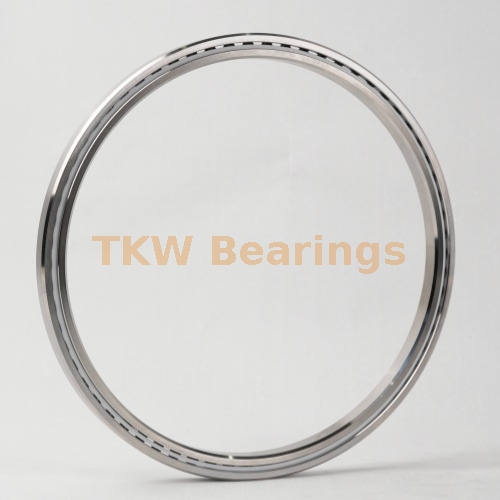

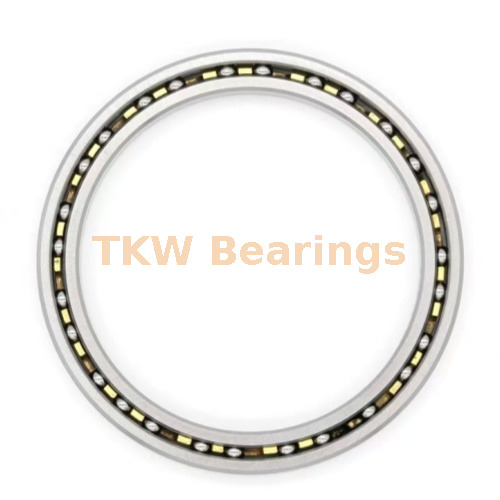

KC065AR0 Lightweight Thin Section Slewing Bearing for Automation Equipment

PRODUCT

You are here: Home » Products » Thin Section Bearings » KC065AR0 Lightweight Thin Section Slewing Bearing for Automation Equipment

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Category

Contact Us

+86-635-8509787
+86-13280450757
sales@xrbearing.com
Yandian Industrial Zone, Liaocheng City, ShanDong Province. China
Skype: brandbearings

Model:
KC065AR0
Brand:
TKW
Item:
thin section bearing

Product Description

KA065AR0

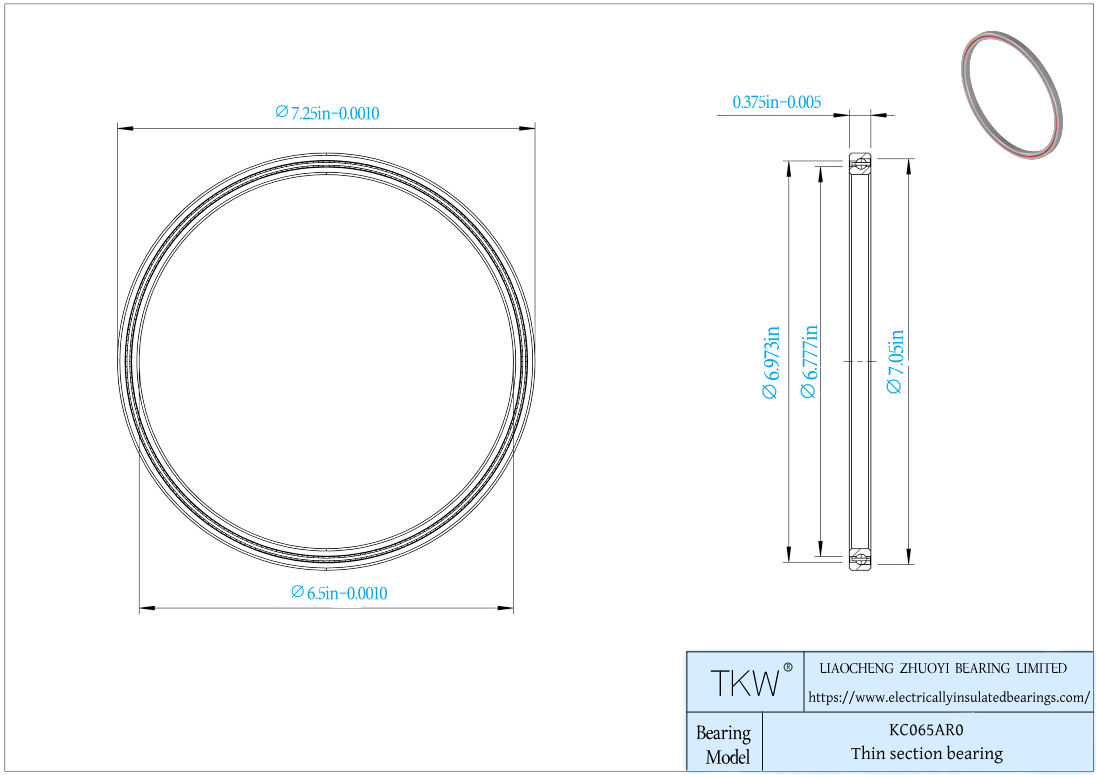

cad图.pdf

If you have any questions, please feel free to email us!

Overview
Bearing Model	KC065ARO
Brand: TKW ®	Interchangeable With:KAYDON
Characteristics
System of Measurement	Inch
Bearing Type	Ball
Seal Type	Open
Thin Section Bearings Type	Reali-Slim Open Bearings
For Load Direction	Angular Contact
Construction	Single Row
Tolerance Class	ABEC-3/ABEC-5/ABEC-7/ABEC-9
Series	KC 3/8"x3/8"
Dimensions
Bore Dia	6.5"
Bore Dia Tolerance	-0.0010"-0"
Outer Dia	7.25"
Outer Dia Tolerance	-0.0010"-0"
Width	0.375"
Width Tolerance	-.005"-0"
Contact Angle	30°
External Diameter On Inner Ring	6.777"
Internal Diameter On Outer Ring (Small Side Face)	6.973"
Internal Diameter On Outer Ring (Large Side Face)	7.05"
Radial Clearance	0.0000-0.0005"
Material
Ring Material	Chrome Steel/440C stainless steel
Ball Material	Chrome Steel/440C stainless steel
Cage Material	Copper retainer/PEEK/PTFE
Temperature Range	-30℃ to 110℃
Weight	0.68 lbs

The TKW Bearing part series KC065AR0 is a potential replacement for these common bearing part numbers.

TKW	KAYDON	RBC	INA	NSK	SSB	SILVER
KC065AR0	KC065AR0	KC065AR0*RBC	CSEC065	NBA16509	RC065AR0	SC065AR0

TKW is a China manufacturer specializing in high-precision bearings. Its product portfolio includes high-precision hybrid ceramic ball bearings, ultra-thin-section bearings, servo motor bearings, high-precision stainless steel bearings, vacuum pump bearings, magnetic levitation bearings, thin-section crossed roller bearings, reactor bearings, full ceramic bearings, bearings for the food and beverage industry, new energy vehicle bearings, excavator bearings, construction machinery bearings, and custom-engineered bearings. The products meet P5, P4, and P2 precision standards, and customized services are available to meet specific customer requirements.
