Item:
thin section bearing

Product Description

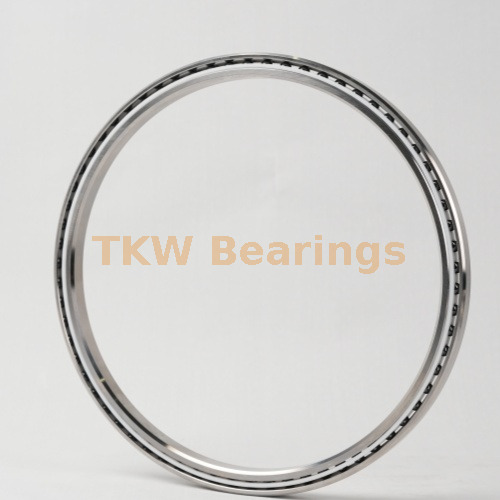

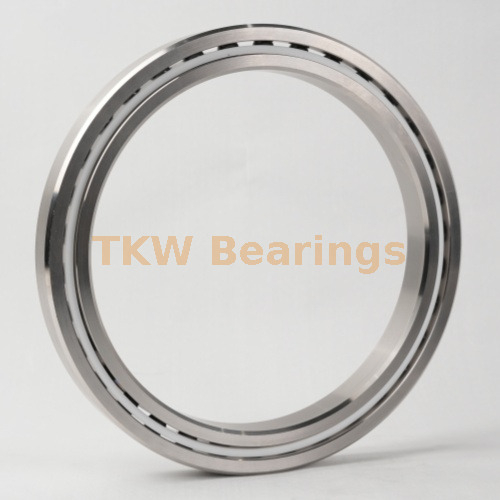

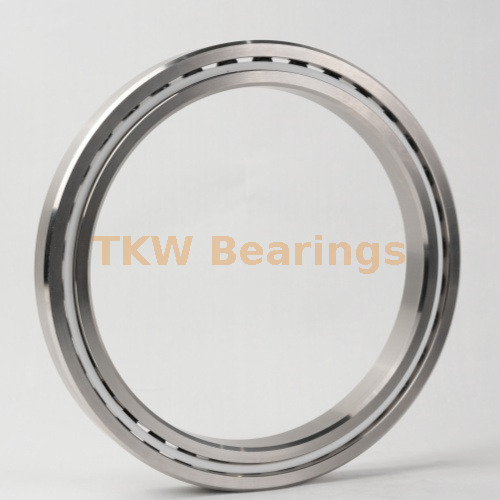

KC140AR0

KC140AR0.pdf

If you have any questions, please feel free to email us!

5b5c774964b098e4845f53fa3164a48f

Overview
Bearing Model	KC140ARO
Brand: TKW ®	Interchangeable With:KAYDON
Characteristics
System of Measurement	Inch
Bearing Type	Ball
Seal Type	Open
Thin Section Bearings Type	Reali-Slim Open Bearings
For Load Direction	Angular Contact
Construction	Single Row
Tolerance Class	ABEC-3/ABEC-5/ABEC-7/ABEC-9
Series	KC 3/8"x3/8"

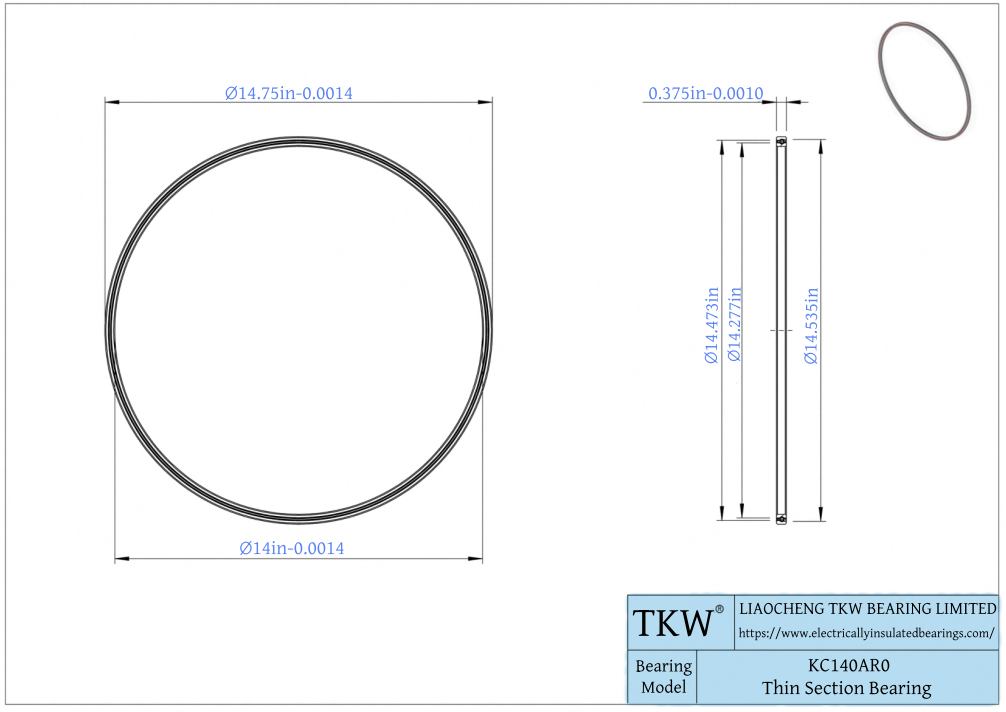

Dimensions
Bore Dia	14"
Bore Dia Tolerance	-0.0014"-0"
Outer Dia	14.75"
Outer Dia Tolerance	-0.0014"-0"
Width	0.375"
Width Tolerance	-.005"-0"
Contact Angle	30°
External Diameter On Inner Ring	14.277"
Internal Diameter On Outer Ring (Small Side Face)	14.473"
Internal Diameter On Outer Ring (Large Side Face)	14.535"
Radial Clearance	0.0000-0.0005"
Material
Ring Material	Chrome Steel/440C stainless steel
Ball Material	Chrome Steel/440C stainless steel
Cage Material	Copper retainer/PEEK/PTFE
Temperature Range	-30℃ to 110℃
Weight	1.43lbs

The TKW Bearing part series KC140AR0 is a potential replacement for these common bearing part numbers.

TKW	KAYDON	RBC	INA	SSB	SILVER	NSK
KC140AR0	KC140AR0	KC140AR0*RBC	CSEC140	RC140AR0	SC140AR0	-

TKW is a manufacturer specializing in high-precision bearings. Its product portfolio includes high-precision hybrid ceramic ball bearings, ultra-thin-section bearings, servo motor bearings, high-precision stainless steel bearings, vacuum pump bearings, magnetic levitation bearings, thin-section crossed roller bearings, reactor bearings, full ceramic bearings, bearings for the food and beverage industry, new energy vehicle bearings, excavator bearings, construction machinery bearings, and custom-engineered bearings. The products meet P5, P4, and P2 precision standards, and customized services are available to meet specific customer requirements.
