KG Series High-precision Thin-section Bearing Robotic Automation Equipment Is Available.

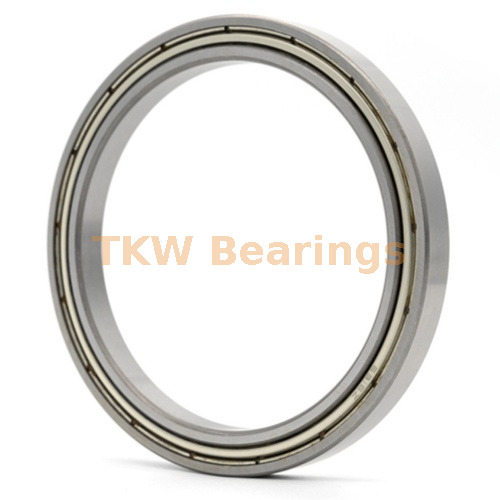

KG series thin-section bearings

slim section bearings are composed of four parts: inner ring, outer ring, rolling elements, and cage. The cross-sectional dimensions of the inner and outer rings are uniform, the cross-section is standard square, and the wall thickness is uniform and thin. The inner and outer ring raceways are integrally formed, the raceway size is fixed, and the cross-sectional specifications remain unchanged when the inner diameter changes. The rolling elements are small steel balls, evenly arranged between the inner and outer raceways; the cage separates the steel balls, limits the distance between the rolling elements, and avoids mutual friction. There is no widening or thickening structure in the inner and outer rings, the overall wall thickness is consistent, the raceway surface is regular, and the cross-sectional parameters of the parts are uniform.

The mainstream precision grades for thin Section Bearings are P4 and P5.The inner diameter, outer diameter, and width tolerances of P5 grade bearings are within the normal range, and the raceway form and position deviations, radial and axial run-outs meet general usage requirements.P4 grade is a high-precision specification with narrower dimensional tolerances, higher raceway geometric accuracy, and significantly reduced radial and axial run-out.

If you have any questions, please feel free to email us!

TKW is a manufacturer specializing in high-precision bearings. Its product portfolio includes high-precision hybrid ceramic ball bearings, ultra-thin-section bearings, servo motor bearings, high-precision stainless steel bearings, vacuum pump bearings, magnetic levitation bearings, thin-section crossed roller bearings, reactor bearings, full ceramic bearings, bearings for the food and beverage industry, new energy vehicle bearings, excavator bearings, construction machinery bearings, and custom-engineered bearings. The products meet P5, P4, and P2 precision standards, and customized services are available to meet specific customer requirements.
