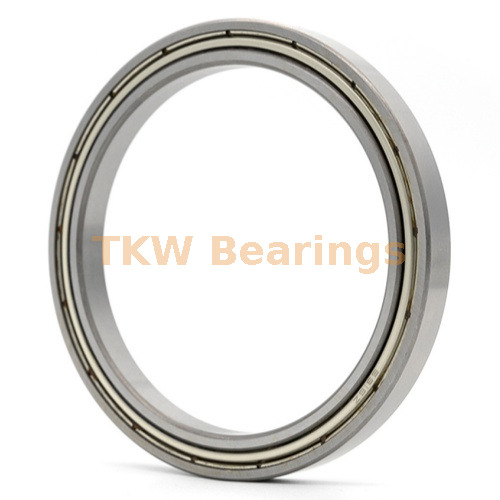

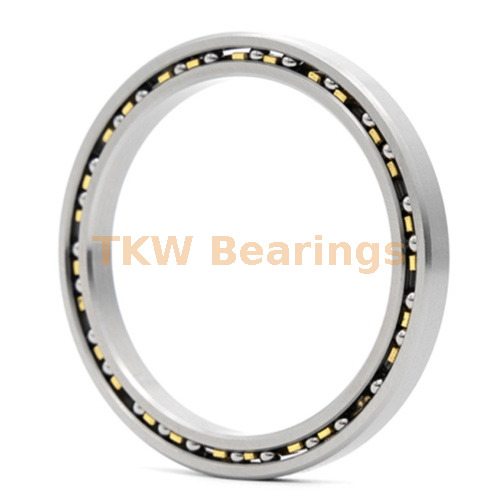

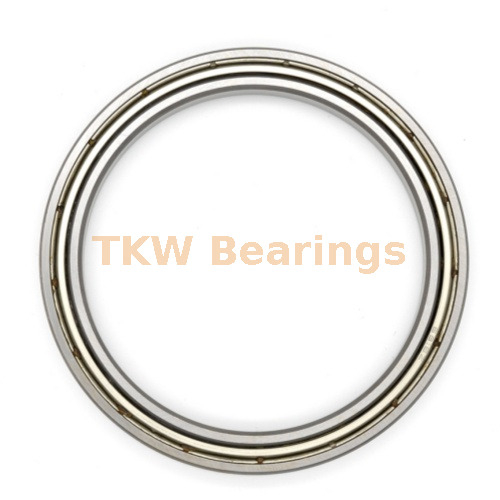

KF120AR0 Thin-section Bearings Used for Hollow Rotary Tables in Robots

KF120AR0

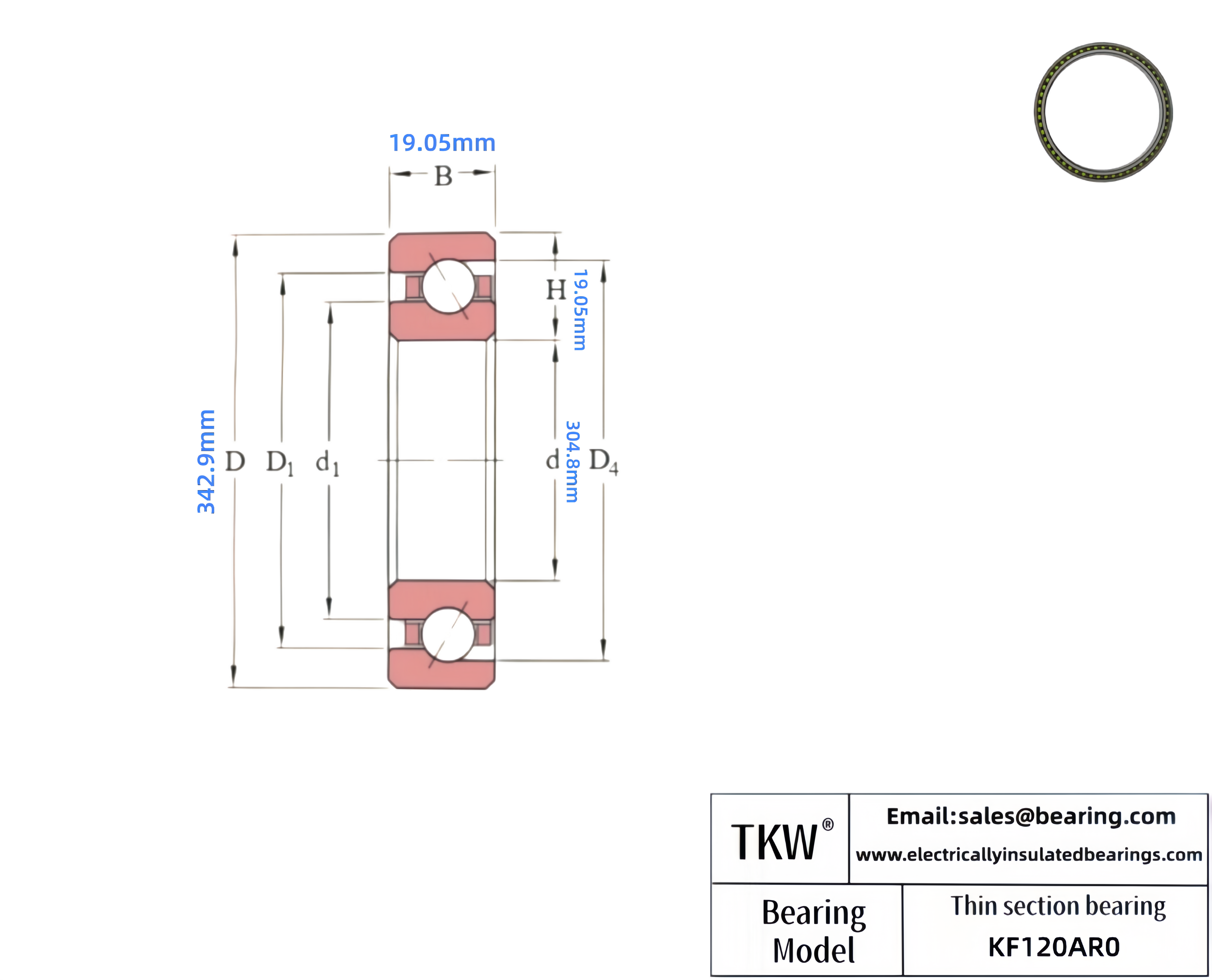

This diagram only shows the lengths d, D, B, and H in millimeters.

KF120AR0.PDF

The document contains charts in millimeters, as well as a brief introduction to our factory

Download

Technical information.

Metric

Imperial

KF120AR0 Thin Section Bearing
d	12 in	aperture
D	13.5 in	outer diameter
B	0.75 in	Radial cross-section
H	0.75 in	width
d1	≈12.555 in	Inner ring rib diameter
D1	≈12.945 in	Outer ring flange diameter
D4	≈13.104 in	Outer ring flange diameter
	0.375 in	Ball diameter
	0.08 in	Maximum chamfer radius of shaft or bearing

KF120AR0 Thin Section Bearing
d	304.8 mm	aperture
D	342.9 mm	outer diameter
B	19.05 mm	Radial cross-section
H	19.05 mm	width
d1	≈318.897 mm	Inner ring rib diameter
D1	≈328.803 mm	Outer ring flange diameter
D4	≈332.842 mm	Outer ring flange diameter
	9.525 mm	Ball diameter
	2.032 mm	Maximum chamfer radius of shaft or bearing

If you have any questions, please feel free to email us!

The TKW Bearing part series KF120AR0 is a potential replacement for these common bearing part numbers.
