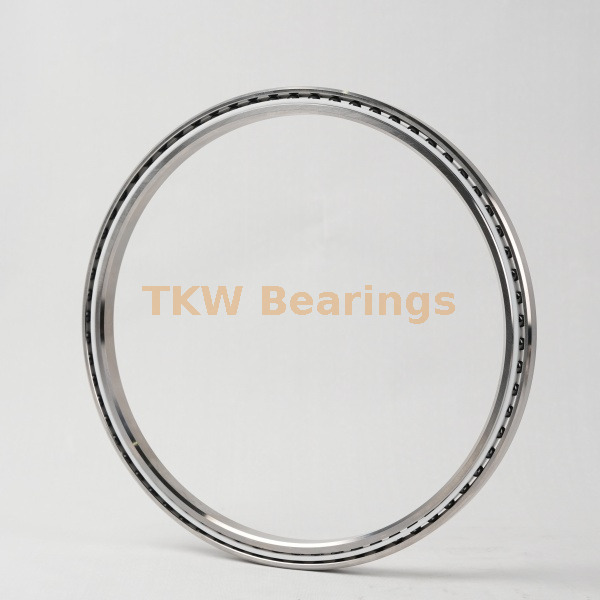

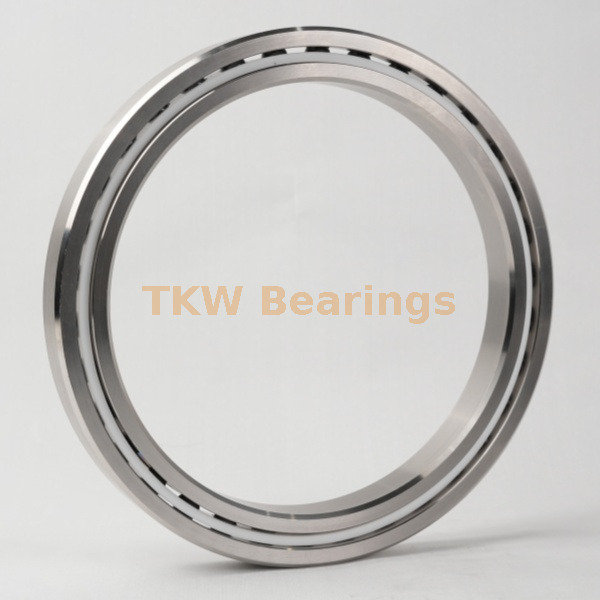

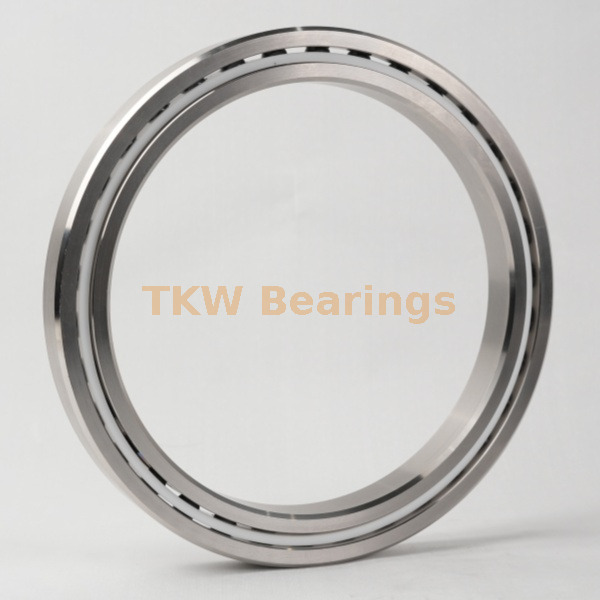

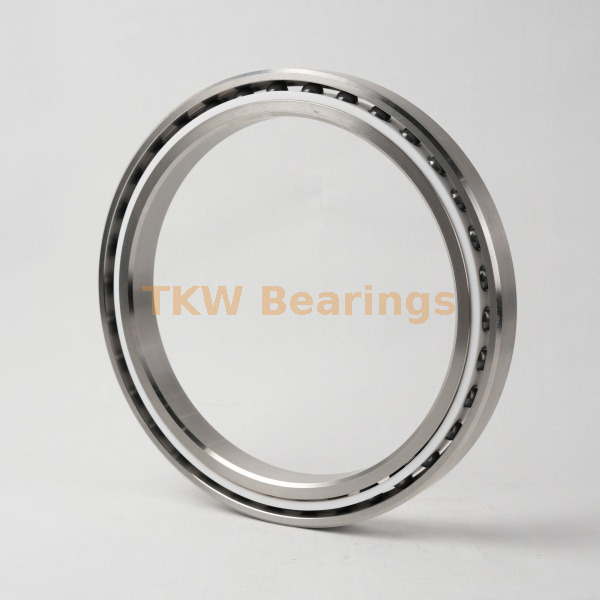

KG-XP0 Precision Slim Thin Section Bearing with High Running Accuracy
The KG-XP0 series is a four-point contact Reali-Slim thin section bearing series with a constant cross-section design of 25.4 × 25.4 mm. Its lightweight and compact design enables it to accommodate radial, axial and moment loads simultaneously, while offering high stiffness, low friction and high running accuracy. They are widely suitable for space-constrained rotating applications, such as robot joints, precision rotary tables, automation equipment and optical instruments.

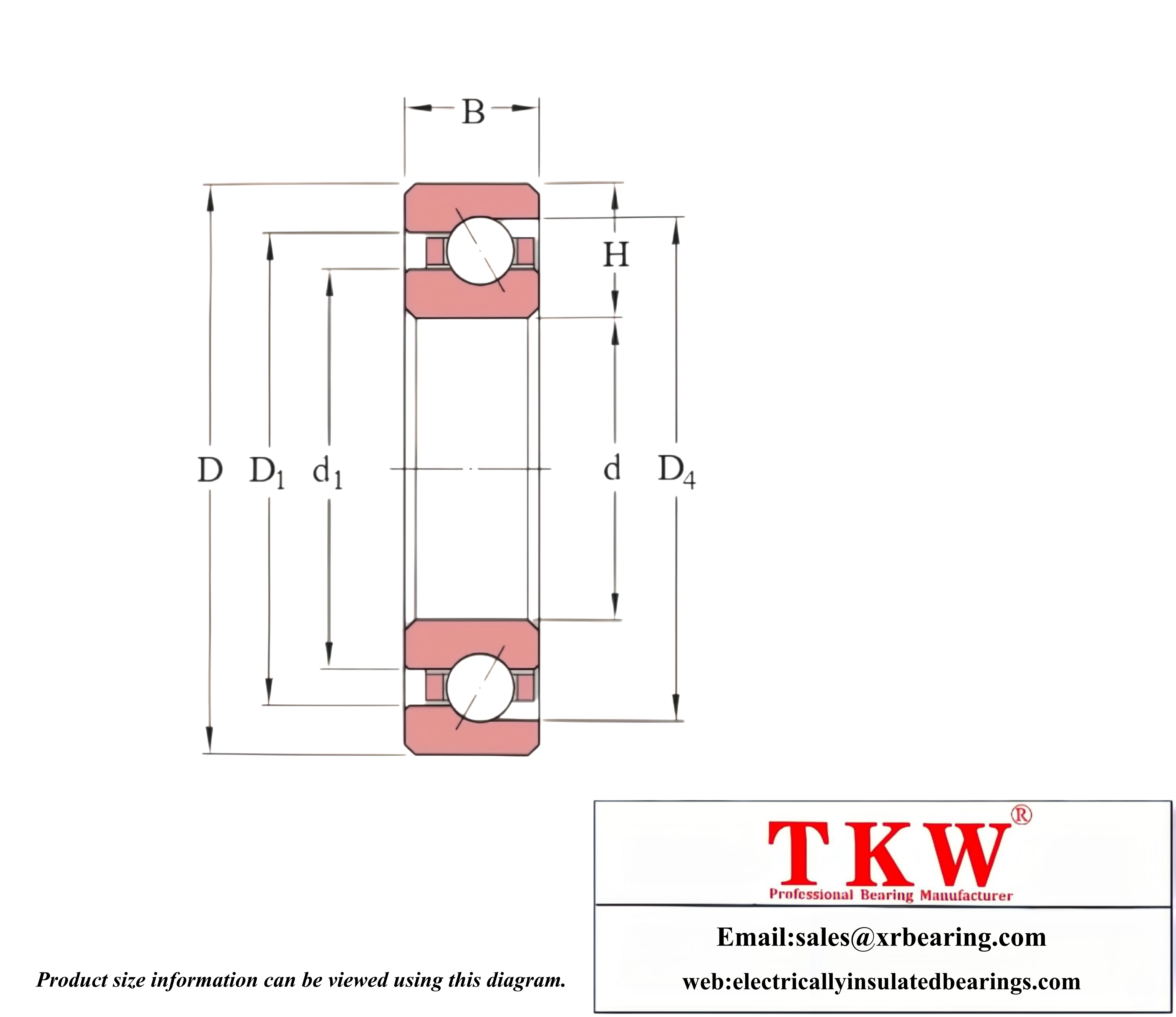

Maximum radius of chamfer on shaft or bearing housing
KG042XP0 Thin Section Bearing
d
107.95 mm / 4.25 in
aperture
D
158.75 mm / 6.25 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 126.797 mm / 4.992 in
Inner ring flange diameter
D1
≈ 139.903 mm / 5.508 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG045XP0 Thin Section Bearing
d
114.3 mm / 4.5 in
aperture
D
165.1 mm / 6.5 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 133.147 mm / 5.242 in
Inner ring flange diameter
D1
≈ 146.253 mm / 5.758 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG047XP0 Thin Section Bearing
d
120.65 mm / 4.75 in
aperture
D
171.45 mm / 6.75 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 139.497 mm / 5.492 in
Inner ring flange diameter
D1
≈ 152.603 mm / 6.008 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG050XP0 Thin Section Bearing
d
127 mm / 5 in
aperture
D
177.8 mm / 7 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 145.847 mm / 5.742 in
Inner ring flange diameter
D1
≈ 158.953 mm / 6.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG055XP0 Thin Section Bearing
d
139.7 mm / 4.25 in
aperture
D
190.5 mm / 4.875 in
outer diameter
B
25.4 mm / 0.3125 in
radial cross section
H
25.4 mm / 0.3125 in
width
d1
≈ 158.547 mm / 4.481 in
Inner ring flange diameter
D1
≈ 171.653 mm / 4.643 in
Outer ring flange diameter
12.7 mm / 0.1563 in
sphere diameter
2.032 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KG060XP0 Thin Section Bearing
d
152.4 mm / 6 in
aperture
D
203.2 mm / 8 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 171.247 mm / 6.742 in
Inner ring flange diameter
D1
≈ 184.353 mm / 7.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG060XP0 Thin Section Bearing
d
152.4 mm / 6 in
aperture
D
203.2 mm / 8 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 171.247 mm / 6.742 in
Inner ring flange diameter
D1
≈ 184.353 mm / 7.258 in
Outer ring flange diameter
12.7 mm /0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG070XP0
KG075XP0
KG080XP0
KG090XP0
KG100XP0
KG110XP0
KG120XP0
KG140XP0
KG070XP0 Thin Section Bearing
d
177.8 mm / 7 in
aperture
D
228.6 mm / 9 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 196.647 mm / 7.742 in
Inner ring flange diameter
D1
≈ 209.753 mm / 8.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG075XP0 Thin Section Bearing
d
190.5 mm / 7.5 in
aperture
D
241.3 mm / 9.5 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 209.347 mm / 8.242 in
Inner ring flange diameter
D1
≈ 222.453 mm / 8.758 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG080XP0 Thin Section Bearing
d
203.2 mm / 8 in
aperture
D
254 mm / 10 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 222.047 mm / 8.742 in
Inner ring flange diameter
D1
≈ 235.153 mm / 9.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG090XP0 Thin Section Bearing
d
228.6 mm / 9 in
aperture
D
279.4 mm / 11 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 247.447 mm / 9.742 in
Inner ring flange diameter
D1
≈ 260.553 mm / 10.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG100XP0 Thin Section Bearing
d
254 mm / 10 in
aperture
D
304.8 mm / 12 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 272.847 mm / 10.742 in
Inner ring flange diameter
D1
≈ 285.953 mm / 11.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG110XP0 Thin Section Bearing
d
279.4 mm / 11 in
aperture
D
330.2 mm / 13 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 298.247 mm / 11.742 in
Inner ring flange diameter
D1
≈ 311.353 mm / 12.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG120XP0 Thin Section Bearing
d
304.8 mm / 12 in
aperture
D
355.6 mm / 14 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 323.647 mm / 12.742 in
Inner ring flange diameter
D1
≈ 336.753 mm / 13.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG140XP0 Thin Section Bearing
d
355.6 mm / 14 in
aperture
D
406.4 mm / 16 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 374.447 mm / 14.742 in
Inner ring flange diameter
D1
≈ 387. 553mm / 15.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG160XP0
KG180XP0
KG200XP0
KG220XP0
KG250XP0
KG300XP0
KG350XP0
KG400XP0
KG160XP0 Thin Section Bearing
d
406.4 mm / 16 in
aperture
D
457.2 mm / 18 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 425.247 mm / 16.742 in
Inner ring flange diameter
D1
≈ 438.353 mm / 17.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG180XP0 Thin Section Bearing
d
457.2 mm / 18 in
aperture
D
508 mm / 20 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 476.047 mm / 18.742 in
Inner ring flange diameter
D1
≈ 489.153 mm / 19.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG200XP0 Thin Section Bearing
d
508 mm / 20 in
aperture
D
558.8 mm / 22 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 526.847 mm / 20.742 in
Inner ring flange diameter
D1
≈ 539.953 mm / 21.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG220XP0 Thin Section Bearing
d
558.8 mm / 22 in
aperture
D
609.6 mm / 24 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 577.647 mm / 22.742 in
Inner ring flange diameter
D1
≈ 590.753 mm / 23.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG250XP0 Thin Section Bearing
d
635 mm / 25 in
aperture
D
685.8 mm / 27 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 653.847 mm / 25.742 in
Inner ring flange diameter
D1
≈ 666.953 mm / 26.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG300XP0 Thin Section Bearing
d
762 mm / 30 in
aperture
D
812.8 mm / 32 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 780.847 mm / 30.742 in
Inner ring flange diameter
D1
≈ 793.953 mm / 31.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG350XP0 Thin Section Bearing
d
889 mm / 35 in
aperture
D
939.8 mm / 37 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 907.847 mm / 35.742 in
Inner ring flange diameter
D1
≈ 920.953 mm / 36.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KG400XP0 Thin Section Bearing
d
1016 mm / 40 in
aperture
D
1066.8 mm / 42 in
outer diameter
B
25.4 mm / 1 in
radial cross section
H
25.4 mm / 1 in
width
d1
≈ 1034.847 mm / 40.742 in
Inner ring flange diameter
D1
≈ 1047.953 mm / 41.258 in
Outer ring flange diameter
12.7 mm / 0.5 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
The mainstream material of thin section bearing rings and steel balls is GCr15 bearing steel, which has high hardness and excellent wear resistance after heat treatment. Corrosion usage scenarios are made of 440C stainless steel, which has strong anti-rust ability and can meet the needs of humid and medium-containing working environments. The material selection of rolling elements and rings should be consistent to ensure that the materials of friction pairs are uniform. Cages are divided into two categories: brass and engineering plastics. The brass material is wear-resistant and not easy to deform, while the plastic material is light in weight and has low operating noise. The thermal expansion coefficients of all supporting materials are compatible with each other and adapt to the thin-walled structure of the bearing to ensure stable operation of the bearing.
The mainstream precision grades for thin Section Bearings are P4 and P5.The inner diameter, outer diameter, and width tolerances of P5 grade bearings are within the normal range, and the raceway form and position deviations, radial and axial run-outs meet general usage requirements.P4 grade is a high-precision specification with narrower dimensional tolerances, higher raceway geometric accuracy, and significantly reduced radial and axial run-out.The two grades of parameters are clearly defined, and all accuracy indicators are implemented in accordance with the specifications, ensuring a high degree of uniformity in the accuracy performance of bearings of the same grade.
