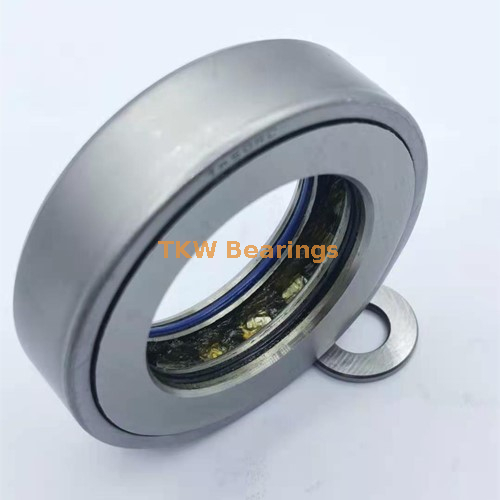

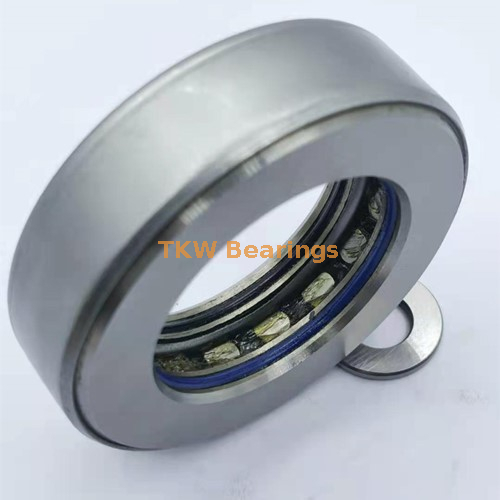

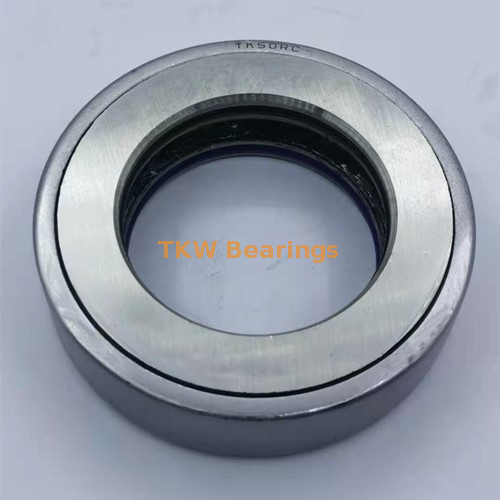

TK50RC Thrust bearings
EASIER
TK50RC KingPin Bearing
Thrust Tapered Roller Bearings
Best Factory Price
Designation: TK50RC Bearings
Type: Thrust Roller Cylindrical Bearings
Interchange: KOYO, MRK Brand
Dimension: 50.3*82*22mm
Application: King Pin Thrust Bearings
Weight: 0.3kg
Stock: 200pcs
Materials: Chrome Steel
Feature: Full Rollers
Brand: EASIER
Origin: China
Thrust KingPin Roller Bearings TK50RC for King Pin
· Comprised of two thrust Cylindrical races, rollers and an outside retainer which holds the components together during shipping and installation.
· Full complement design (cageless).
· These thrust bearings are specifically designed for oscillating applications.
· Types TTC, TTCS and TTCL are identical except for the outside retainer construction.
King Pin Bearing with Tapered Roller King Pin Bearing with Ball King Pin Bearing with Metal Shell
King Pin Bearings TK50RC also named King Pin Thrust Bearings, are consist of two pieces washer ( the bearing rings), steel ball or steel rollers,cages, rubber seals, metal shell (normally we use chrome steel materials). the same with thrust ball bearings or thrust roller bearings, the King Pin Bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.
The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately. What is the different is the thrust ball bearings or thrust roller bearings have no metal shell design. The materials we adopt chrome steel, and steel ball or steel rollers.
Applications of King Pin Bearings TK50RC
-- Marine engines,Agricultural equipment's,
-- Steering,
-- Light Vehicles,
-- Industrial movers,
-- Fork lift trucks,
-- Conveyors,
-- Construction machinery,
Bore Range | Common Applications | |
1.750" - 16.000" 44.45 - 406.40mm | Oilfield Top Drives and Swivels, Extruders, Pulp and Paper Mill Equipment, Boring Mill Tables | |
5.000" - 17.000" 127.00 - 431.80 mm | Oilfield Top Drives and Swivels, Extruders, Coal and Rock Crushers, Steel Mills | |
0.885" - 3.010" 22.48 - 76.45 mm | Heavy Truck and Trailer Applications, Class 8 Trailer Landing Gear, Construction Equipment, Kingpin Assemblies, Steer Axles, Tractors | |
0.885" - 3.010" 22.48 - 76.45 mm | Heavy Truck and Trailer Applications, Class 8 Trailer Landing Gear, Construction Equipment, Kingpin Assemblies, Steer Axles, Tractors | |
Top Bore 0.250" - 1.500" 6.35 - 38.10 mm | Bottom Bore 0.275" - 1.525" 6.99 - 38.74 mm | Small Crane Hooks, Handheld Pneumatic Tools,Scissor Jacks, Truck Landing Wheel Cranks, Handheld Power Tools |
3.500" - 20.000" 88.90 - 508.00 mm | Crane Hooks, Gear Boxes, Pumps, Rolling Mills,Cone Crushers, Winch Systems, Heavy Duty Swivels |
King Pin Thrust Bearings including Thrust ball bearings, thrust roller cylindrical bearings, thrust tapered roller bearings, most of them are with shelled, rubber seals or metal shelled. with cage or without cage.
King pin Bearings for Man Truck Bearings, IVECO Truck Bearings, DAF Truck bearings, Renault Truck Bearings, Scania Truck bearings, SAF Truck Bearings, Volvo Truck Bearings, Mercedes Benz truck bearings, truck wheel hub bearing, bearing set without spacer, bearing set with spacer, and tapered roller bearing.
Features of Thrust Tapered Roller Bearings
-- Excellent prevention from overrunning & backstopping
-- Self-Aligned ,
-- High load sustaining capacity
-- Seal excludes contamination with a separator and bore liner,
-- Prevent rotational damage,
-- Get automatically locked when rolled in opposite direction
EASIER is one of China Bearing manufacturers and exporter of King Pin Bearings with steel ball or steel rollers, also written as king-pin or king pin, is a very important component in any vehicle. It is the main pivot in the mechanism of steering in any vehicle. King Pins are also used as fifth wheel coupling apparatus in vehicles. King Pins have an important property of being able to carry heavier weights and therefore can be mostly seen in Large or Heavy Vehicles.
The Kingpin Bearing is capable of bearing thrust pressure in various industrial pump applications and possesses high resistivity and durability. These are constructed using high grade raw materials, which are tested under the supervision of experienced professionals. Kingpin bearing is the main pivot in the steering mechanism of a car or other vehicles.
EASIER/TKW as Top China Bearing manufacturer, it Can manufacture and supply complete series King Pin Bearings TK50RC & King Pin Thrust Bearings, Thrust Ball bearings and Thrust Roller Bearings. there are few bearing manufacturer in the world manufacturer this kinds of bearings like Fersa from Spain, RBC, TIMKEN from USA, TURBO,TKW, KOYO,MRK from Japan etc. Our products are the same design and replace them for customers on the market.
