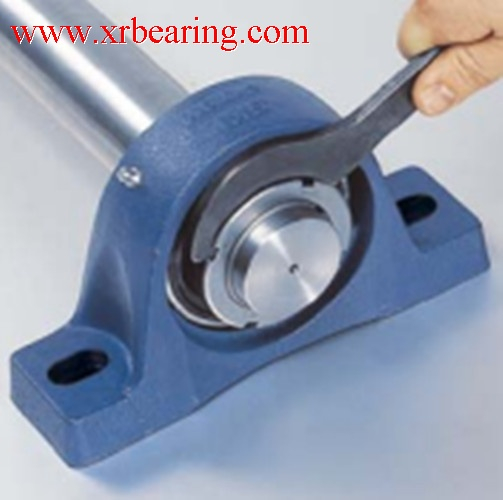

Mounted Ball Bearing SYJ60TF

SYJ 60 TF Pillow block ball bearing units
SYJ 512 housing with YAR 212-2F bearing insert
UCP212 Pillow Block Bearing consist of UC212 Bearing with P212 Pillow block
Weight: 4.4kg

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SYJ 60 TF
  • EASIER
  • UCP212
  • YAR 212-2F bearing
  • Bearing SYJ60TF price

SYJ 60 TF Pillow block ball bearing units

SYJ 512 housing with YAR 212-2F bearing insert

UCP212 Pillow Block Bearing consist of UC212 Bearing with P212 Pillow block

Weight: 4.4kg




SYJ60TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SYJ60TF plummer block unit consist of SYJ512 Housing and YAR212-2F Bearing, SYJ60TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ60TF bearings is widely used in many industrial application, the inner diameter is 60mm,the outer ring is 138mm, the height is 65.1mm, the weight of SYJ60TF bearings is 4.45kgSYJ60TF bearings with a standard inner ring are designed in according with a moduar concept.


Each SYJ60TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Dimensions - SYJ 60 TF Dimensions - SYJ 60 TF Dimensions - SYJ 60 TF

DIMENSIONS

d
60 mm
d1
≈ 75.64 mm
A
65 mm
A1
47 mm
B
65.1 mm
B4
10 mm
H
69.8 mm
H1
26.5 mm
H2
137.5 mm
J
188.5 mm
J
max. 198 mm
J
min. 179 mm
L
241 mm
N
20 mm
N1
29.5 mm
s1
39.7 mm


Pillow block housing

-- housing with long base for mounting on flat surfaces

-- extremely robust cast iron housing

-- with integrated lubrication nipple, if difficult operating conditions make relubrication necessary

-- the housing is painted to protect against corrosion; the bearing insert and the mounting surface are treated with anti-corrosion oil


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SYJ60TF bearings, Our large quantity SYJ60TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ60TF bearings to your office at the first time.More technical details, please contact with:
