Mounted Ball Bearing Unit SY55TR

SY 55 TR Pillow block ball bearing units
SY 511 M housing with YAR 211-2RF bearing
Weight: 3.4kg/pcs

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SY 55 TR
  • EASIER
  • SY 511 M
  • YAR 211-2RF
  • Bearing SY55TR price

Keywords:SY55TR bearing Plummer block housing unit,SY55TR bearings

Metric, Bearing unit, Bearing steel, Set screw locking

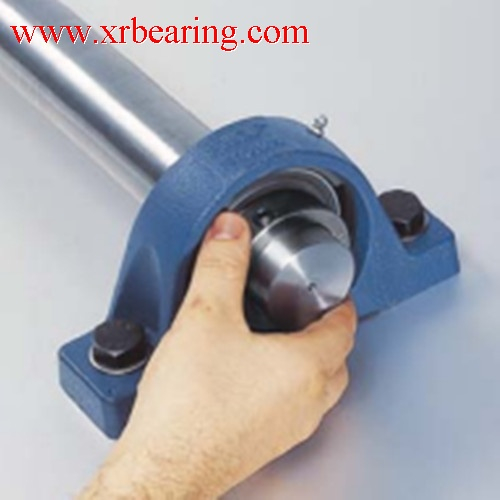

SY55TR bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY55TR plummer block unit consist of SY511M Housing and YAR211-2RF Bearing, SY55TR bearing plummer block unit can accommodate moderate initial misalignment, SY55TR bearings is widely used in many industrial application, the inner diameter is 55mm, the outer ring is 126mm, the height is 55.6mm, the weight of SY55TR bearings is 3.7kg.


SY55TR bearings with a standard inner ring are designed in according with a moduar concept,each SY55TR bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Dimensions - SY 55 TR Dimensions - SY 55 TR Dimensions - SY 55 TR

DIMENSIONS

d
55 mm
d1
≈ 69.06 mm
A
60 mm
A1
40 mm
A5
37.5 mm
B
55.6 mm
B4
9 mm
H
63.5 mm
H1
24 mm
H2
126 mm
J
171.5 mm
J
max. 181 mm
J
min. 162 mm
L
219 mm
N
18 mm
N1
27.5 mm
s1
33.4 mm


China Ball Bearing Units interchange with many different models and can be bolted to machinery without any modification. The exact amount of clearance is allowed between the bore and the shaft to allow a perfect fit. Therefore, FYH Ball Bearing Units do not require any additional lubrication or seal installation. As a result, handling and downtime can be drastically reduced. Four different locking mechanisms are available:

(1) Set Screw

(2) Eccentric Locking Collar

(3) Tapered Adapter

(4) Concentric Collar


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SY55TR bearings, Our large quantity SY55TR bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea,by Train are all avaiable. we are sure we can ship our SY55TR bearings to your office at the first time.More technical details, please contact with :
