NSK Standard Y50-9J Thrust Roller KingPin Bearings

Designation: Y50-9J Bearings

Type: Thrust Roller Tapered Bearings

Interchange: NSK, MRK Brand

Dimension: 50.3*82*19mm

Application: King Pin Thrust Bearings

Weight: 0.3kg

Stock: 200pcs

Materials: Chrome Steel

Feature: Full Rollers

Brand: EASIER

Origin: China

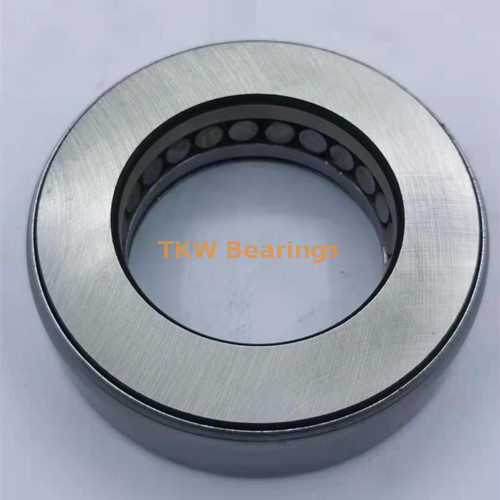

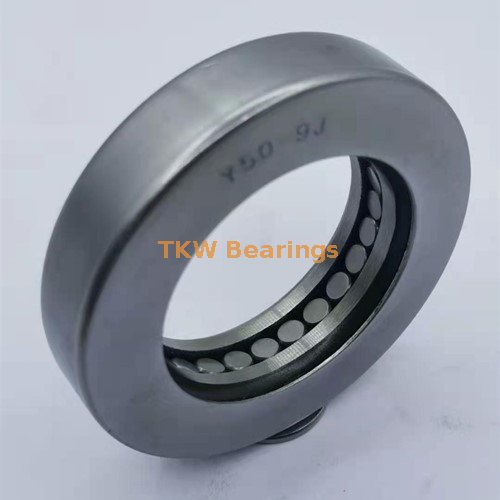

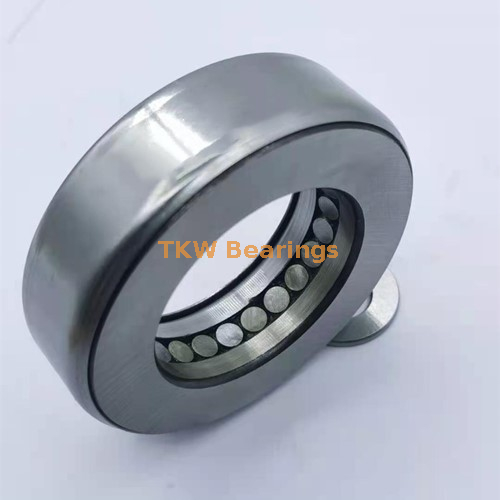

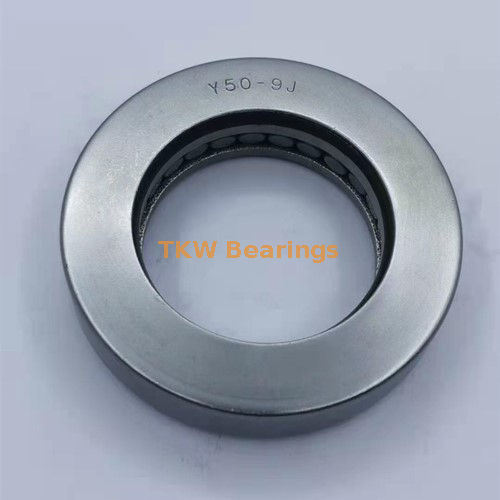

Thrust KingPin Roller Bearings Y50-9J for King Pin

· Comprised of two thrust Tapered races, rollers and an outside retainer which holds the components together during shipping and installation.

· Full complement design (cageless).

· These thrust bearings are specifically designed for oscillating applications.

· Types TTC, TTCS and TTCL are identical except for the outside retainer construction.

               King Pin Bearing with Tapered Roller                       King Pin Bearing with Ball             King Pin Bearing with Metal Shell

King Pin Bearings Y50-9J also named King Pin Thrust Bearings, are consist of two pieces washer ( the bearing rings), steel ball or steel rollers,cages, rubber seals, metal shell (normally we use chrome steel materials). the same with thrust ball bearings or thrust roller bearings, the King Pin Bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.

The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately. What is the different is the thrust ball bearings or thrust roller bearings have no metal shell design. The materials we adopt chrome steel, and steel ball or steel rollers.

Applications of King Pin Bearings Y50-9J

-- Heavy Vehicles & other automobiles,

-- Marine engines,Agricultural equipment's,

-- Steering,

-- Light Vehicles,

-- Industrial movers,

-- Fork lift trucks,

-- Conveyors,

-- Construction machinery,

King Pin Thrust Bearings including Thrust ball bearings, thrust roller cylindrical bearings, thrust tapered roller bearings, most of them are with shelled, rubber seals or metal shelled. with cage or without cage.

King pin Bearings for Man Truck Bearings, IVECO Truck Bearings, DAF Truck bearings, Renault Truck Bearings, Scania Truck bearings, SAF Truck Bearings, Volvo Truck Bearings, Mercedes Benz truck bearings, truck wheel hub bearing, bearing set without spacer, bearing set with spacer, and tapered roller bearing.

Features of Thrust Tapered Roller Bearings

-- Excellent prevention from overrunning & backstopping

-- Self-Aligned ,

-- High load sustaining capacity

-- Seal excludes contamination with a separator and bore liner,

-- Prevent rotational damage,

-- Get automatically locked when rolled in opposite direction

EASIER is one of China Bearing manufacturers and exporter of King Pin Bearings with steel ball or steel rollers, also written as king-pin or king pin, is a very important component in any vehicle. It is the main pivot in the mechanism of steering in any vehicle. King Pins are also used as fifth wheel coupling apparatus in vehicles. King Pins have an important property of being able to carry heavier weights and therefore can be mostly seen in Large or Heavy Vehicles.

EASIER/TKW as Top China Bearing manufacturer, it Can manufacture and supply complete series King Pin Bearings Y50-9J & King Pin Thrust Bearings, Thrust Ball bearings and Thrust Roller Bearings. there are few bearing manufacturer in the world manufacturer this kinds of bearings like Fersa from Spain, RBC, TIMKEN from USA, TURBO,TKW, KOYO,MRK from Japan etc. Our products are the same design and replace them for customers on the market.
