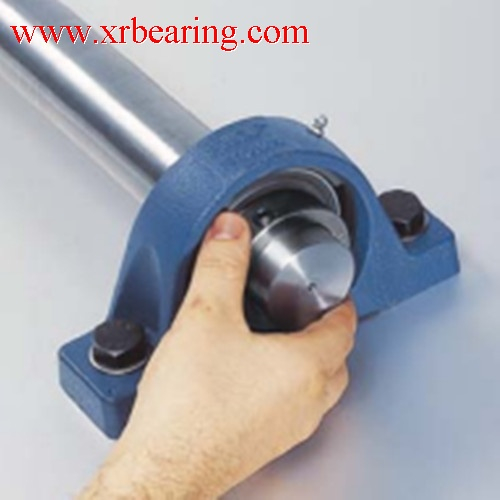

SY1.9/16TF bearing Plummer block housing unit
SY508U Housing and YAR208-109-2F Bearing
Weight: 1.95kg

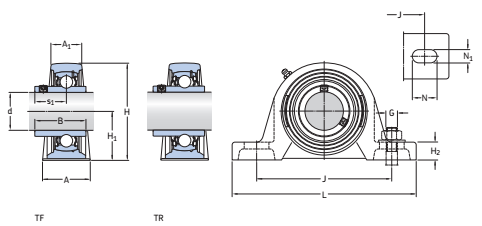

SY1.9/16TF pillow block bearing units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY1.9/16TF plummer block unit consist of SY508U Housing and YAR208-109-2F Bearing, SY1.9/16TF bearing plummer block unit can accommodate moderate initial misalignment, SY1.9/16TF bearings is widely used in many industrial application, the inner diameter is 39.688mm, the outer ring is 99mm,the height is 49.2mm, the weight of SY1.9/16TF bearings is 1.95kg.
SY1.9/16TF bearings with a standard inner ring are designed in according with a moduar concept, each SY1.9/16TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
Although its basic performance should be similar to that of deep groove ball bearings, because this kind of bearings are mostly used in rougher machinery, the installation and positioning are not accurate enough, the axis of the shaft and the seat hole are poorly aligned, or the shaft is long and deflection In the case of large-scale bearings, the accuracy of the bearing itself is not high enough, and some structures are relatively rough, so the actual performance of the deep groove ball bearing of the same specification will be discounted. For example: the outer spherical ball bearing with top wire is applied to the through shaft with large rigidity difference and large deflection. This kind of bearing has seal rings on both sides to prevent the intrusion of dirt. It has been filled before leaving the factory.
The performance of the Ball Bearing Unit with eccentric sleeve and the outer spherical bearing with top wire are basically the same, except that the top wire is not on the inner ring, but on the eccentric sleeve. The inner hole of the tapered outer spherical ball bearing is a tapered hole with a taper of 1:12, which can be directly installed on a tapered shaft or on an optical shaft without a shoulder with the aid of a tightening bushing, and the bearing clearance can be fine-tuned.
