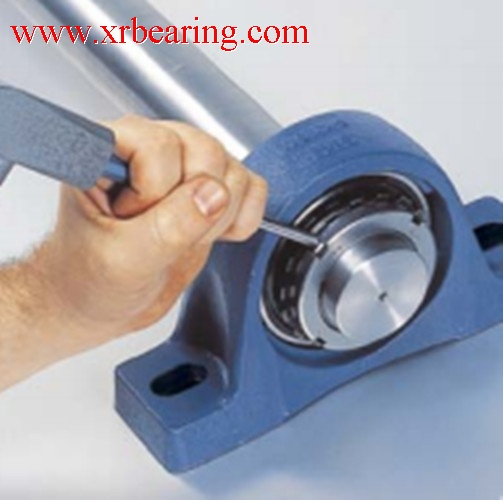

SY 2.11/16 TF Pillow Block Ball Bearing

SY 2.11/16 TF Pillow Block Ball Bearing Unit

SY513U Housing and YAR213-211-2F Bearing

Weight: 5.7kg



SY2.11/16TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY2.11/16TF plummer block unit consist of SY513U Housing and YAR213-211-2F Bearing, SY2.11/16TF bearing plummer block unit can accommodate moderate initial misalignment, SY2.11/16TF bearings is widely used in many industrial application, the inner diameter is 68.263mm,the outer ring is 149mm,the height is 68.3mm, the weight of SY2.11/16TF bearings is 5.7kg.

SY2.11/16TF bearings with a standard inner ring are designed in according with a moduar concept, each SY2.11/16TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Pillow block bearing Unit

• Grade 10 balls, ground and honed raceways for precision, quiet running and higher speed capacity

• Prelubricated with a high quality, long life lithium/calcium grease

• 120° set screw angle for minimum inner distortion and knurled cup point set screws for increased vibration resistance

• Cast iron with multi-purpose contact seals
