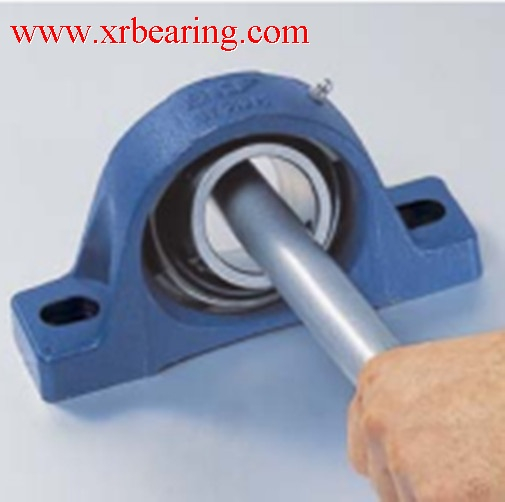

SY1.1/16TF Y-bearing Unit

SY1.1/16TF bearing Plummer block housing unit

SY506U Housing and YAR205-101-2F Bearing

Weight: 0.82kg

SY1.1/16TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY1.1/16TF plummer block unit consist of SY506U Housing and YAR205-101-2F Bearing, SY1.1/16TF bearing plummer block unit can accommodate moderate initial misalignment, SY1.1/16TF bearings is widely used in many industrial application, the inner diameter is 26.988mm, the outer ring is 82mm, the height is 38.1mm, the weight of SY1.1/16TF bearings is 0.82kg.

SY1.1/16TF bearings with a standard inner ring are designed in according with a moduar concept, each SY1.1/16TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Pillow Block Ball Bearing Units interchange with many different models and can be bolted to machinery without any modification. The exact amount of clearance is allowed between the bore and the shaft to allow a perfect fit. Therefore, FYH Ball Bearing Units do not require any

additional lubrication or seal installation. As a result, handling and downtime can be drastically reduced. Four different locking mechanisms are available:

(1) Set Screw

(2) Eccentric Locking Collar

(3) Tapered Adapter

(4) Concentric Collar
