SY1.1/2 TF/AH bearing Plummer block housing unit
SY508 U/AH Housing and YAR208-108-2F/AH Bearing
Weight: 1.8kg
SY1.1/2 TF/AH bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY1.1/2 TF/AH plummer block unit consist of SY508 U/AH Housing and YAR208-108-2F/AH Bearing, SY1.1/2 TF/AH bearing plummer block unit can accommodate moderate initial misalignment,SY1.1/2 TF/AH bearings is widely used in many industrial application, the inner diameter is 38.1mm, the outer ring is 99mm, the height is 49.2mm, the weight of SY1.1/2 TF/AH bearings is 1.8kg.
SY1.1/2 TF/AH bearings with a standard inner ring are designed in according with a moduar concept, each SY1.1/2 TF/AH bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

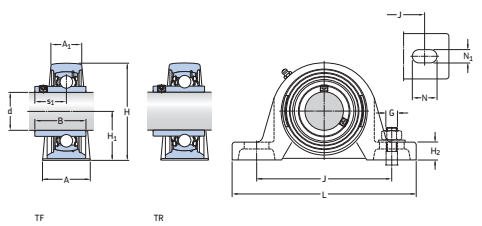

d | 38.1 mm | |
---|---|---|
d1 | ≈ 51.8 mm | |
A | 48 mm | |
A1 | 30 mm | |
A5 | 26 mm | |
B | 49.2 mm | |
B4 | 8 mm | |
H | 49.2 mm | |
H1 | 19 mm | |
H2 | 99 mm | |
J | 135.5 mm | |
J | max. 146 mm | |
J | min. 125 mm | |
L | 175 mm | |
N | 14 mm | |
N1 | 24.5 mm | |
s1 | 30.2 mm |

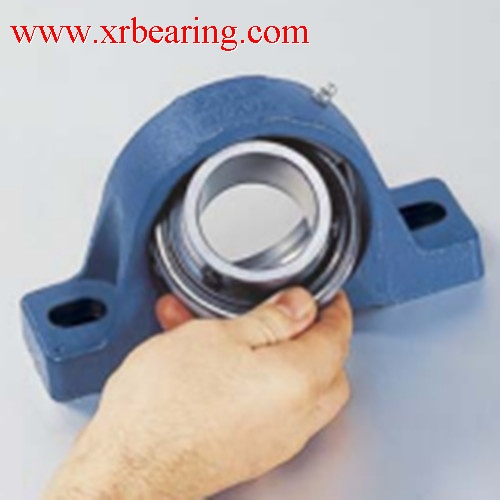

Pillow Block Ball Bearing Unit is a kind of bearing unit which combines rolling bearing with bearing housing. Most of the Ball Bearing Unit are made of spherical surface, and are installed with bearing pedestal with spherical inner holes. They have various structure forms, good universality and interchangeability. The internal structure of outer spherical bearing is the same as that of deep groove ball bearing.
Although its basic performance should be similar to that of deep groove ball bearings, because this kind of bearings are mostly used in rougher machinery, the installation and positioning are not accurate enough, the axis of the shaft and the seat hole are poorly aligned, or the shaft is long and deflection In the case of large-scale bearings, the accuracy of the bearing itself is not high enough, and some structures are relatively rough, so the actual performance of the deep groove ball bearing of the same specification will be discounted. For example: the outer spherical ball bearing with top wire is applied to the through shaft with large rigidity difference and large deflection. This kind of bearing has seal rings on both sides to prevent the intrusion of dirt. It has been filled before leaving the factory.
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SY1.1/2 TF/AH bearings, Our large quantity SY1.1/2 TF/AH bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL,FEDEX,TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY1.1/2 TF/AH bearings to your office at the first time. More technical details, please contact with :
