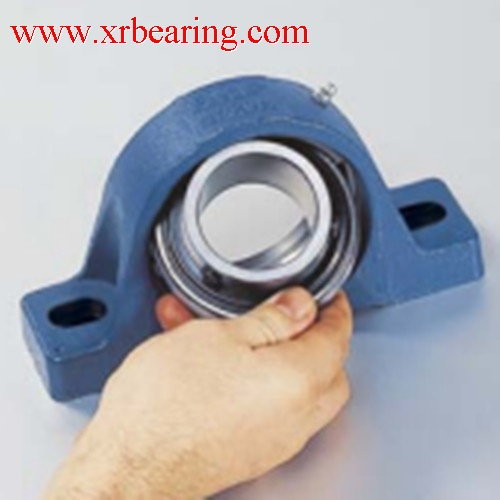

SY1.1/2TF Pillow Block Bearing Unit

SY 1.1/2 TF Pillow Block Ball Bearing Unit - Two-Bolt Base, 1.5000 in Bore, Cast Iron Material
SY508M Housing and YAR208-108-2F Bearing,
Weight: 1.85kg

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SY 1.1/2 TF
  • EASIER
  • YAR208-108-2F+SY508M
  • SY1.1/2TF
  • USD$6-9

SY 1.1/2 TF Pillow Block Ball Bearing Unit - Two-Bolt Base, 1.5000 in Bore, Cast Iron Material

SY508M Housing and YAR208-108-2F Bearing,

Weight: 1.85kg




SY1.1/2TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY1.1/2TF plummer block unit consist of SY508M Housing and YAR208-108-2F Bearing, SY1.1/2TF bearing plummer block unit can accommodate moderate initial misalignment, SY1.1/2TF bearings is widely used in many industrial application, the inner diameter is 38.1mm, the outer ring is 99mm, the height is 49.2mm, the weight of SY1.1/2TF bearings is 1.85kg,


SY1.1/2TF bearings with a standard inner ring are designed in according with a moduar concept, each SY1.1/2TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

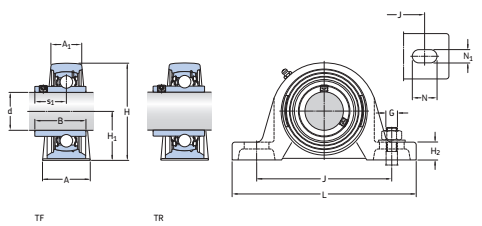

Dimensions - SY 1.1/2 TF Dimensions - SY 1.1/2 TF Dimensions - SY 1.1/2 TF

DIMENSIONS

d
38.1 mm
d1
≈ 51.8 mm
A
48 mm
A1
30 mm
A5
26 mm
B
49.2 mm
B4
8 mm
H
49.2 mm
H1
19 mm
H2
99 mm
J
135.5 mm
J
max. 146 mm
J
min. 125 mm
L
175 mm
N
14 mm
N1
24.5 mm
s1
30.2 mm
Bearing plummer block units with a cast housing and an eccentric locking collar

1 Mount any components that are on the shaft between the two Y-bearing units.

2 With the eccentric locking collar removed, slide the Y-bearing plummer block unit onto the shaft with the locking device facing outwards.

3 Position the Y-bearing unit on the support surface. Fit the attachment bolts or nuts but do not tighten them.

4 Mount the other Y-bearing plummer block unit on the other end of the shaft, following steps 2 and 3.

5 Carefully align both Y-bearing units, using the shaft. Fully tighten the attachment bolts or nuts in the housing base.

6 Align the shaft in the bearing arrangement axially and – if possible – turn it a few times.

7 Place the eccentric locking collars on the inner ring extension of both Y-bearing units and snug tighten them in the main direction of rotation

8 Tighten the locking collars to their final position, using a hook spanner with a stud engaging the hole in the circumference of the collar

9 Tighten the grub screw in the eccentric locking collar of both Y-bearing units

10 If applicable, snap the end cover(s) into place.
