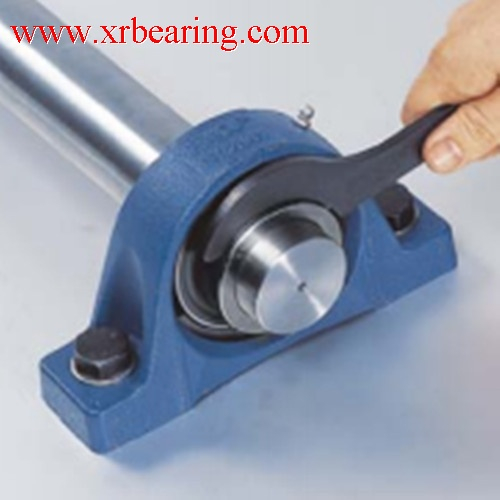

SY1.15/16TF Bearing Insert

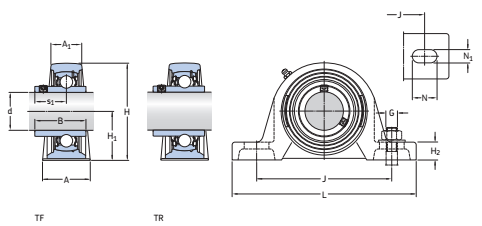

SY1.15/16TF bearing Plummer block housing unit

SY510U Housing and YAR210-115-2F Bearing

Weight: 2.85kg

SY1.15/16TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY1.15/16TF plummer block unit consist of SY510U Housing and YAR210-115-2F Bearing, SY1.15/16TF bearing plummer block unit can accommodate moderate initial misalignment,SY1.15/16TF bearings is widely used in many industrial application, the inner diameter is 49.212mm, the outer ring is 114mm,the height is 51.6mm, the weight of SY1.15/16TF bearings is 2.85kg.

SY1.15/16TF bearings with a standard inner ring are designed in according with a moduar concept, each SY1.15/16TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
